Veritas Large Router Plane

Here's just the tool for cleaning up dados, grooves and shallow hinge mortises! The blade depth is regulated by a fine screw feed that travels 1/32" per turn for precise adjustment, with the resulting depth of cut controlled by a locking depth stop. Unique to the large router plane is a spring-loaded blade-clamping collar that holds the blade in position when the collar is loosened. It provides tactile feedback, allowing controlled blade adjustment to a depth of 1". The collar can also be set to fully release for quick and easy blade removal, for repositioning in front of the post for general work, behind the post for bullnose applications, or laterally (left or right) for work on hinge gains. Made to the same high standards as other Veritas planes, the ductile cast iron body has been accurately machined and ground flat. Weight is 2 lb. The large wooden knobs are positioned to provide both comfort and excellent control.

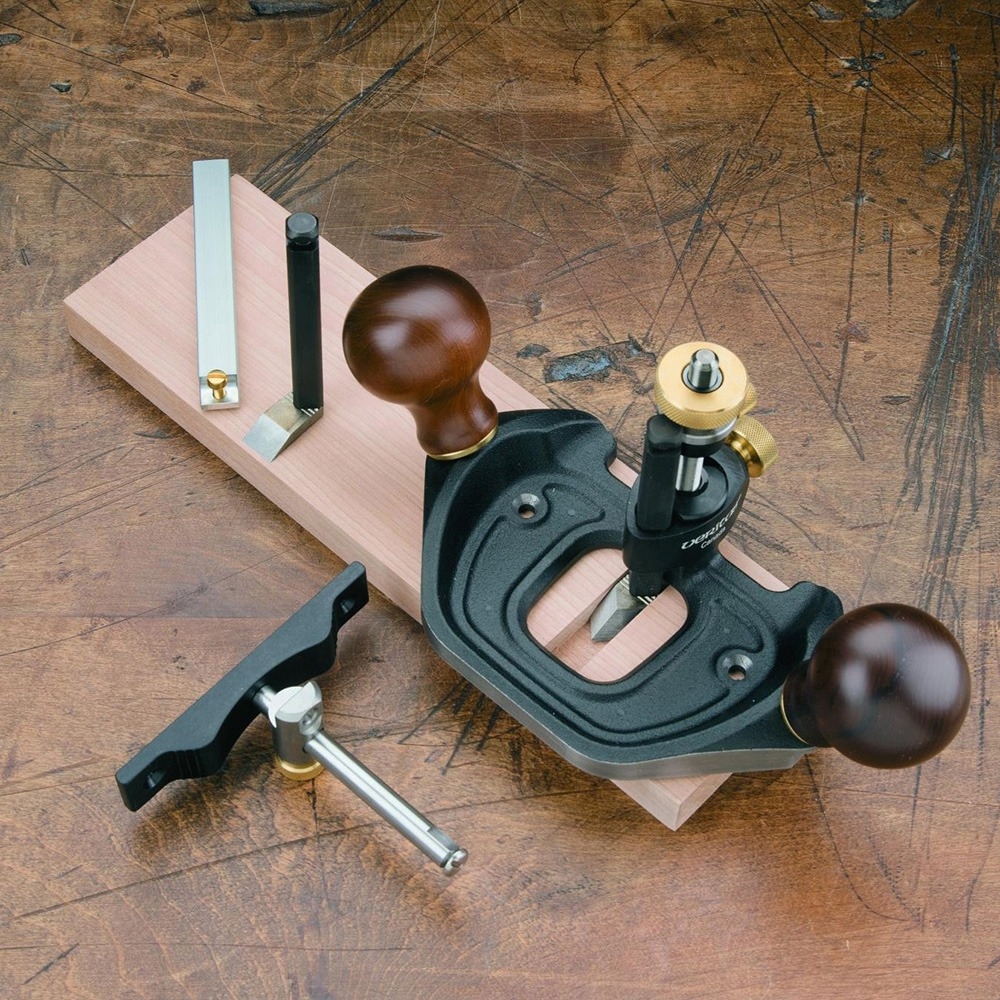

The plane includes two high-carbon steel cutters: a two-piece 1/2" straight blade, and a two-piece 1/2" spear-point blade. A blade sharpening jig is also included. The optional Fence (#71671, sold separately) can be positioned on either side of the plane and will work on both straight and curved pieces.

Veritas Large Router Plane Details:

• Built for stopped or through dadoes and grooves, or any work needing a precisely controlled depth
• Ductile cast iron body is machined with flat sole and sides square to the sole
• Blade depth is regulated by a fine screw feed that travels 1/32" per turn, locked in place by a positive depth stop

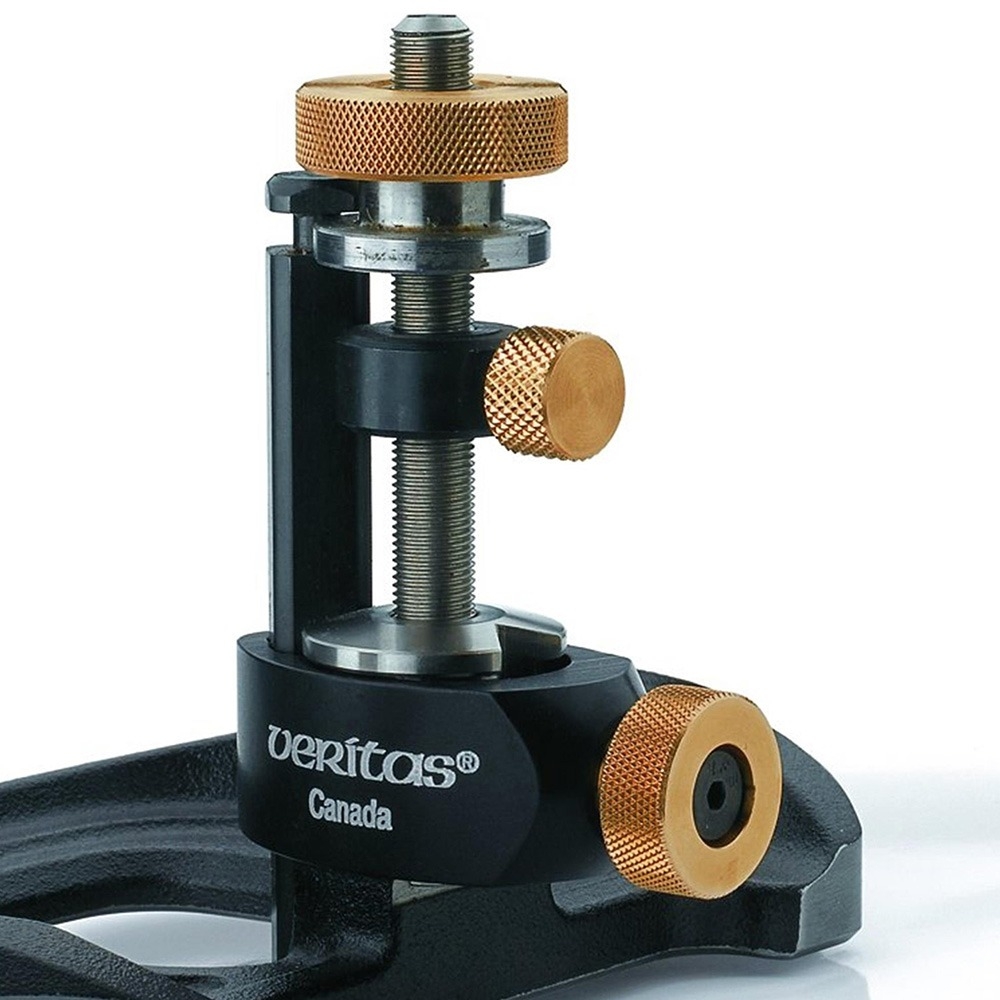

• Spring-loaded blade-clamping collar gives tactile feedback as you adjust the blade, holding it securely once set
• Optional stainless-steel and aluminum fence (#71671, sold separately) mounts on either side of the plane and works on both straight and curved pieces
• Comes with two high-carbon steel cutters - a 1/2" straight blade and a 1/2" spear-point blade - and a sharpening jig.
• Equally suited to inlay or intarsia work, or cleaning out recesses for hardware installation where fine control matters
