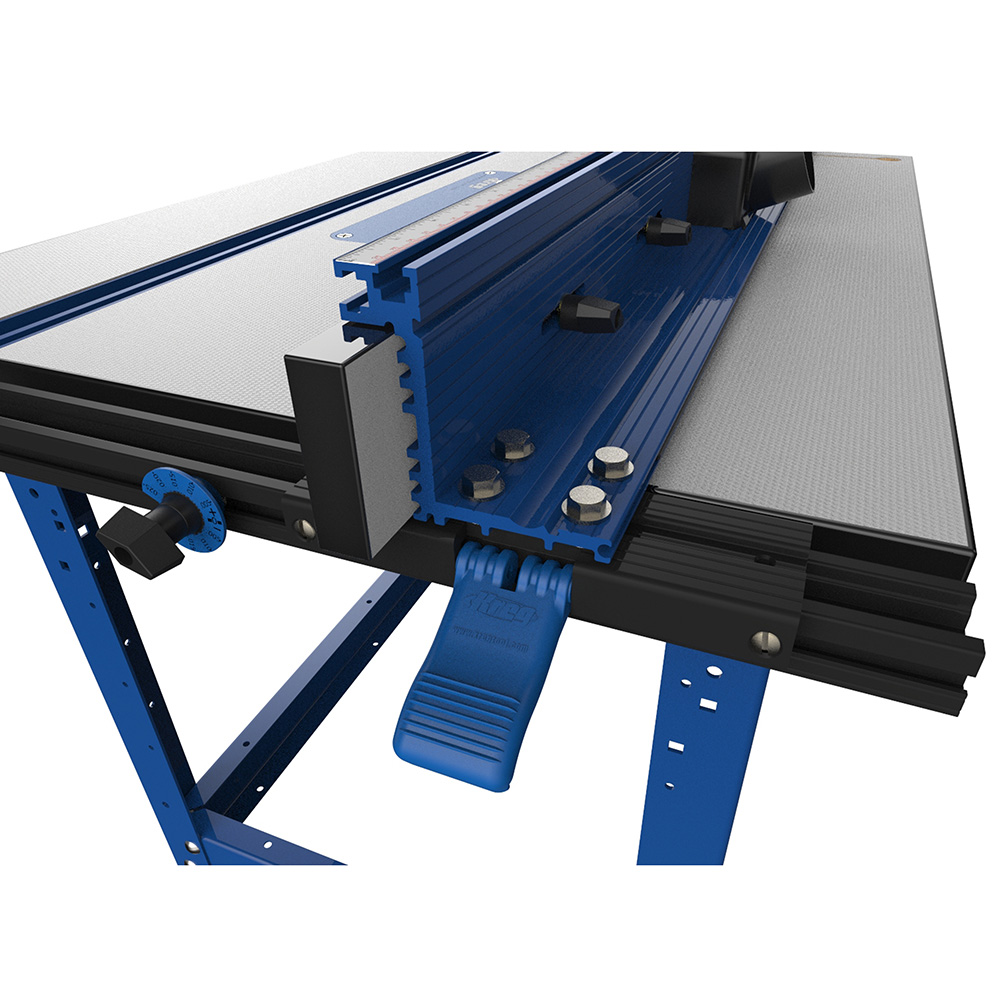

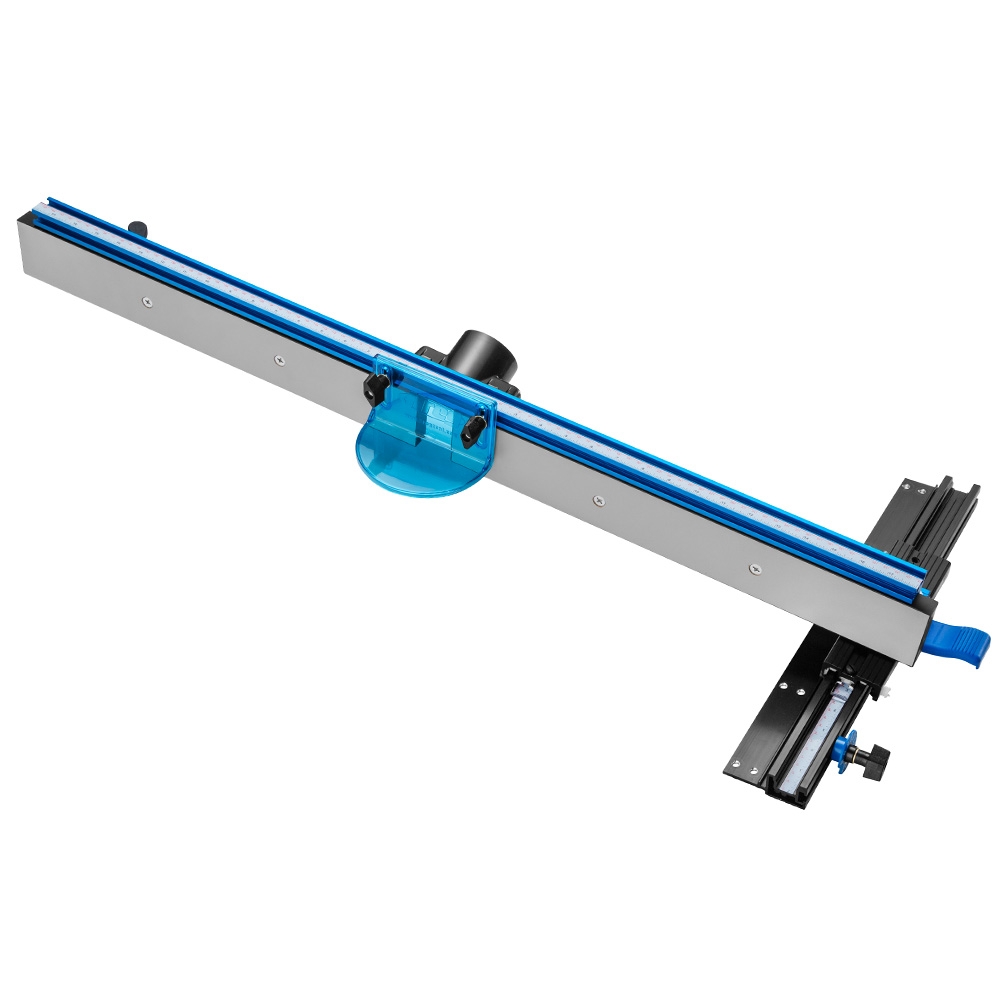

This rugged aluminum fence delivers a new level of precision and convenience to most any router table top. It utilizes a T-square mounting design that allows for fast and easy positioning of the fence and a cam style lockdown which keeps it perfectly parallel to the miter slot at all times. The fence adjusts easily with one hand, and locks firmly in place with dual locks: a large paddle lock on the infeed end, and a quarter-turn lock on the outfeed end that prevents fence deflection. Once roughly positioned, the included micro-adjuster and magnified measuring system let you dial in the exact setting. The fence is built from a heavy-duty aluminum extrusion with fully independent fence faces that can be jogged for use as a vertical jointer-just insert the included spacer rods behind the outfeed fence.
Features:

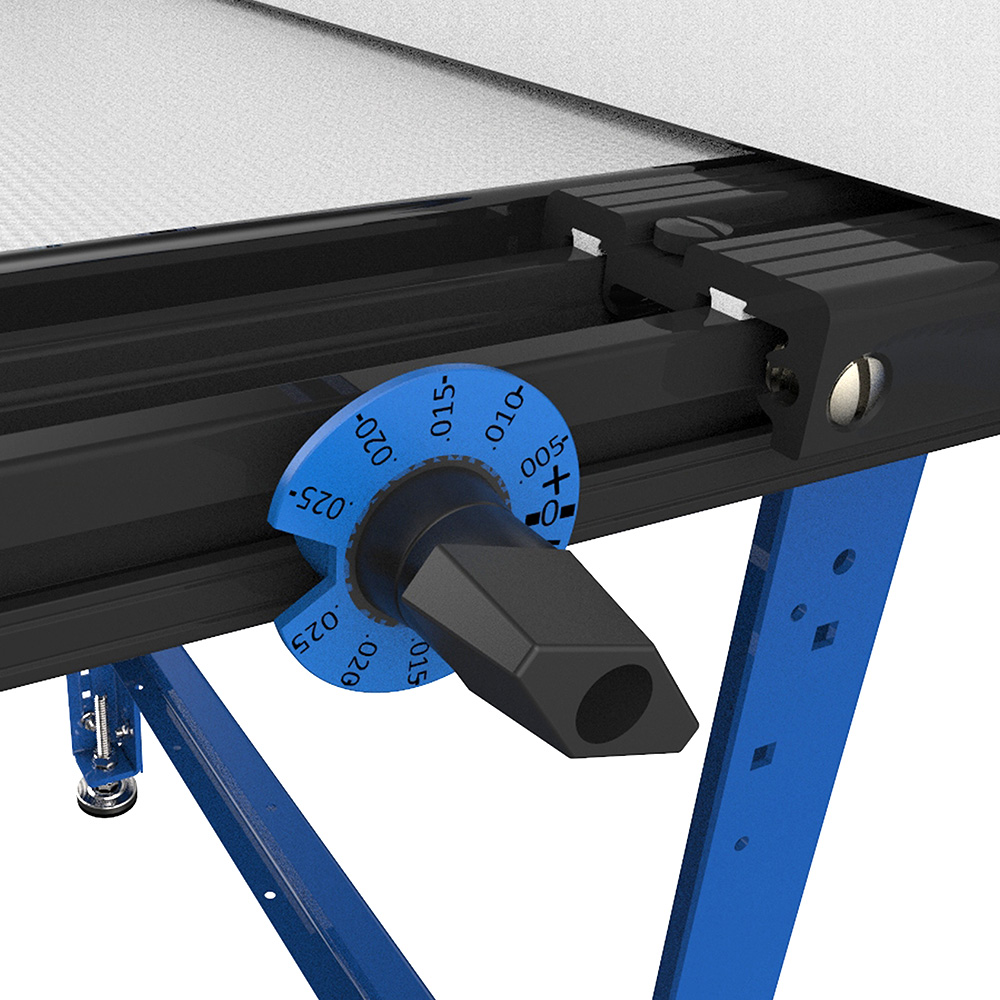

Magnified measuring system with adjustable measuring scale allows accurate setups. Included Micro-Adjuster allows you to refine setups with absolute precision
Independent sliding fence faces can be positioned exactly where needed to provide workpiece support close to the bit, and to maximize chip collection into the fence's built-in dust port
Two jointing rods are included-just slide them into position behind the outfeed fence face, and the fence doubles as a jointer for putting perfect edges on boards
Get real precision on any router table. A single-side, universal-mounting design allows the fence to be securely attached to most router table tops from 3/4'' to 1-1/2'' thick
Material: Heavy-duty anodized aluminum with laminated sliding faces
Jointing Increments: 1/32'' and 1/16''
Fence Height: 3-1/2"
Compatible With:
Most router table tops from 3/4'' to 1-1/2'' thick. Fits 1'' thick tables without modification. Thinner or thicker tables may require modification. Router bit hole must be located 16'' from right side of table
A stopped dado or groove is a cut that does not run all the way through a work piece. Making stopped dado or groove cuts can be tricky because you can't see the bit. The trick is to make marks on the
