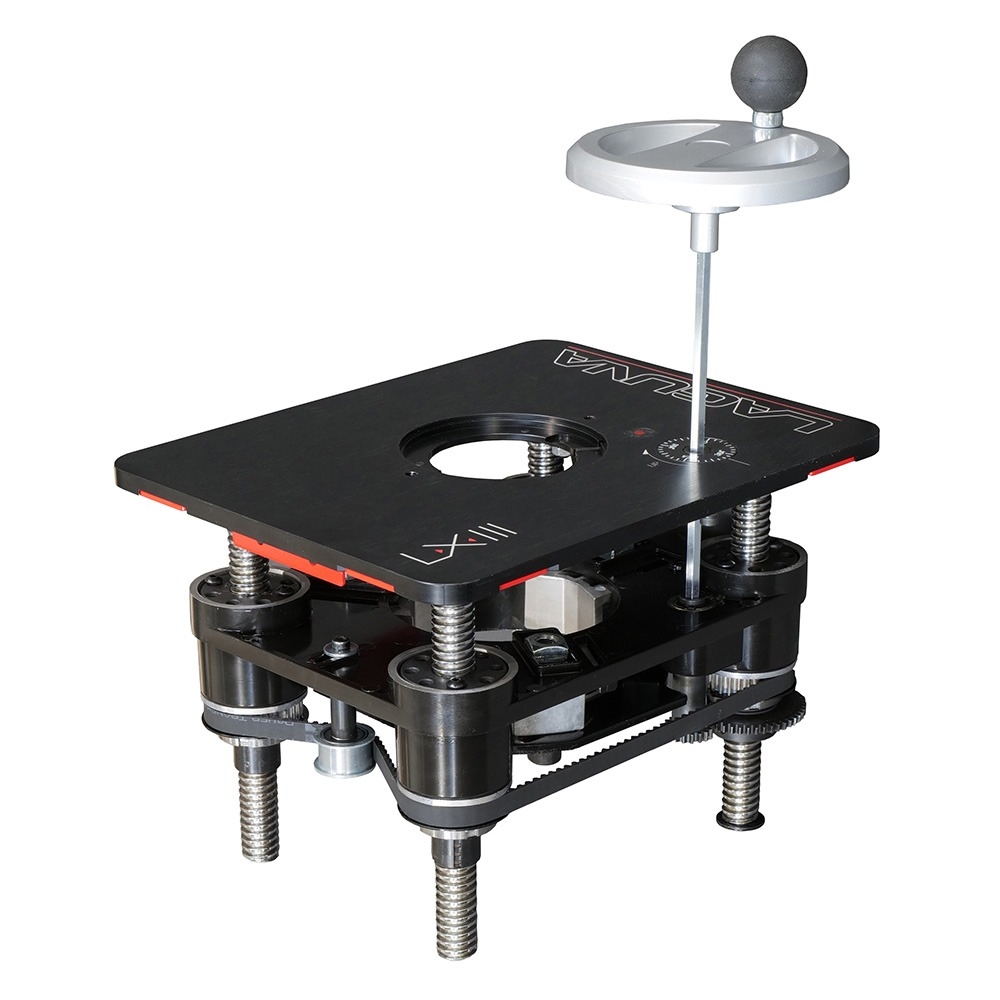

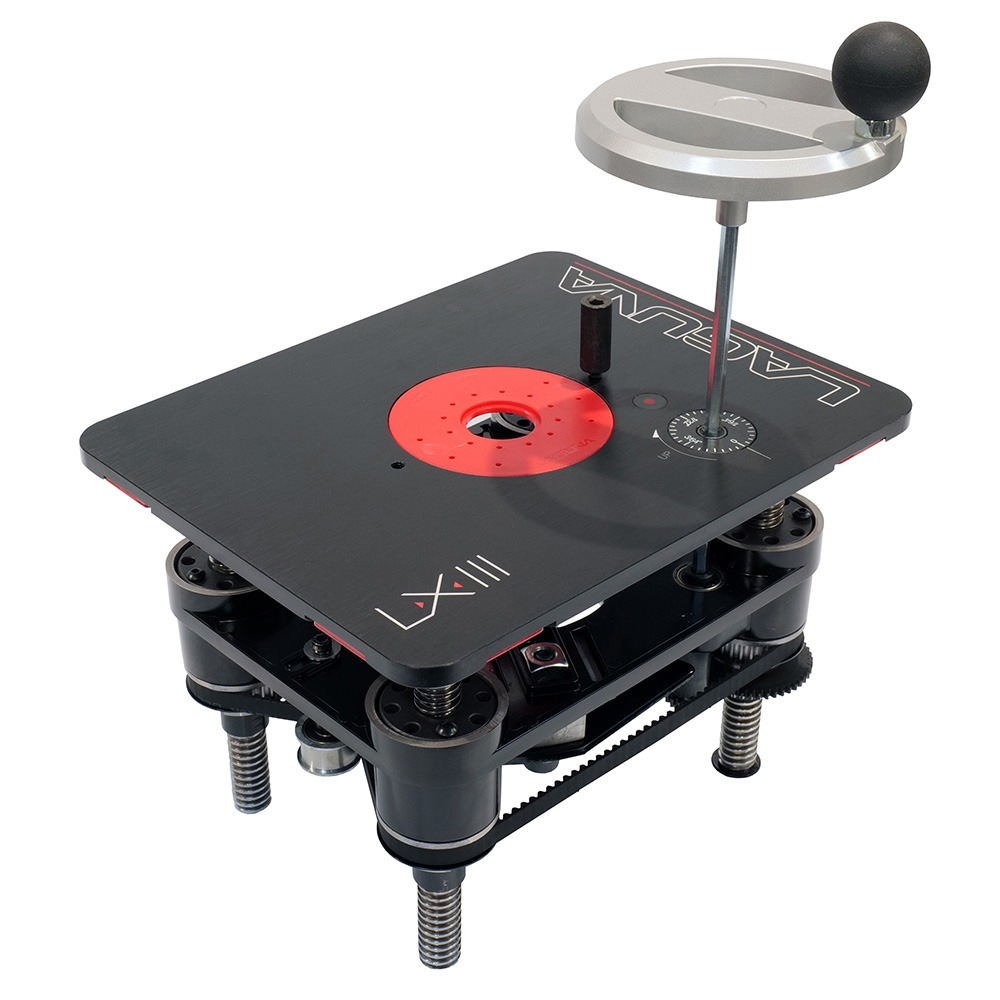

Laguna's LX3 Router Lift is engineered for precision, stability and ease of use. It features four heavy-duty 3/4''-thick Acme threaded posts synchronized by a maintenance-free timing belt, to deliver smooth and accurate bit height adjustments. Three adjustable, locking clamping jaws accept all popular round-body router motors from 3'' to 4.3'' in diameter without the need for adapters or repositioning the bolt-on jaws. The robust, anodized aluminum top plate is drilled and tapped from underneath, to prevent sawdust from getting trapped in holes and interfering with material feeding. Edge tension guides and built-in leveling plates ensure secure, vibration-free operation for consistent and professional results.
Laguna LX3 Router Lift Details:
3/8''-thick anodized aluminum top plate fits many standard router table openings (Note: Does not fit Rockler router tables)
Three-jaw adjustable clamping system is compatible with mid-size and large router motors from 3'' to 4.3'' in diameter
Top plate is drilled and tapped from below to provide a smooth, fastener-hole free top surface that won't trap sawdust
Heavy-duty 3/4''-thick lift posts with Acme threads provide widely spaced support for motor lift carriage

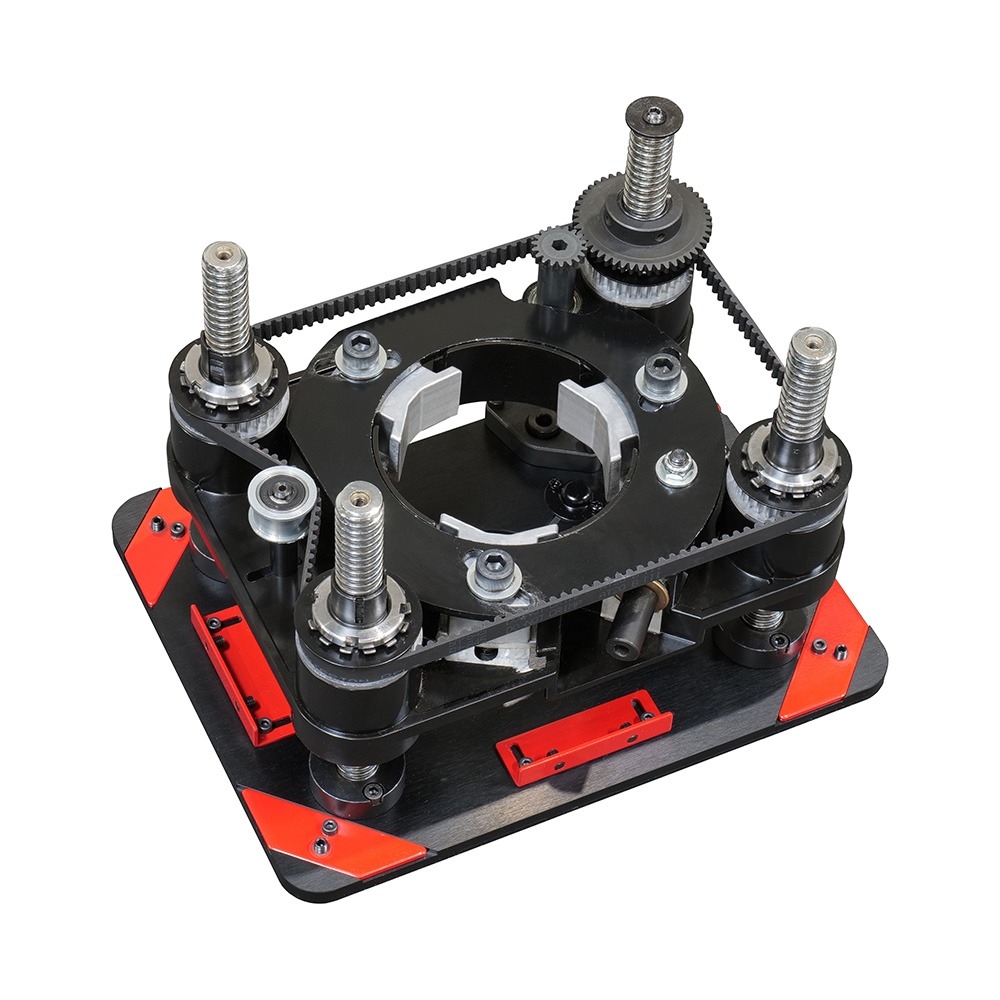

Geared lift mechanisms in all four corners are driven by a timing belt for smooth, precise operation without the need for a lift lock
4.9'' of vertical travel accommodates longer router bits and greater range of use

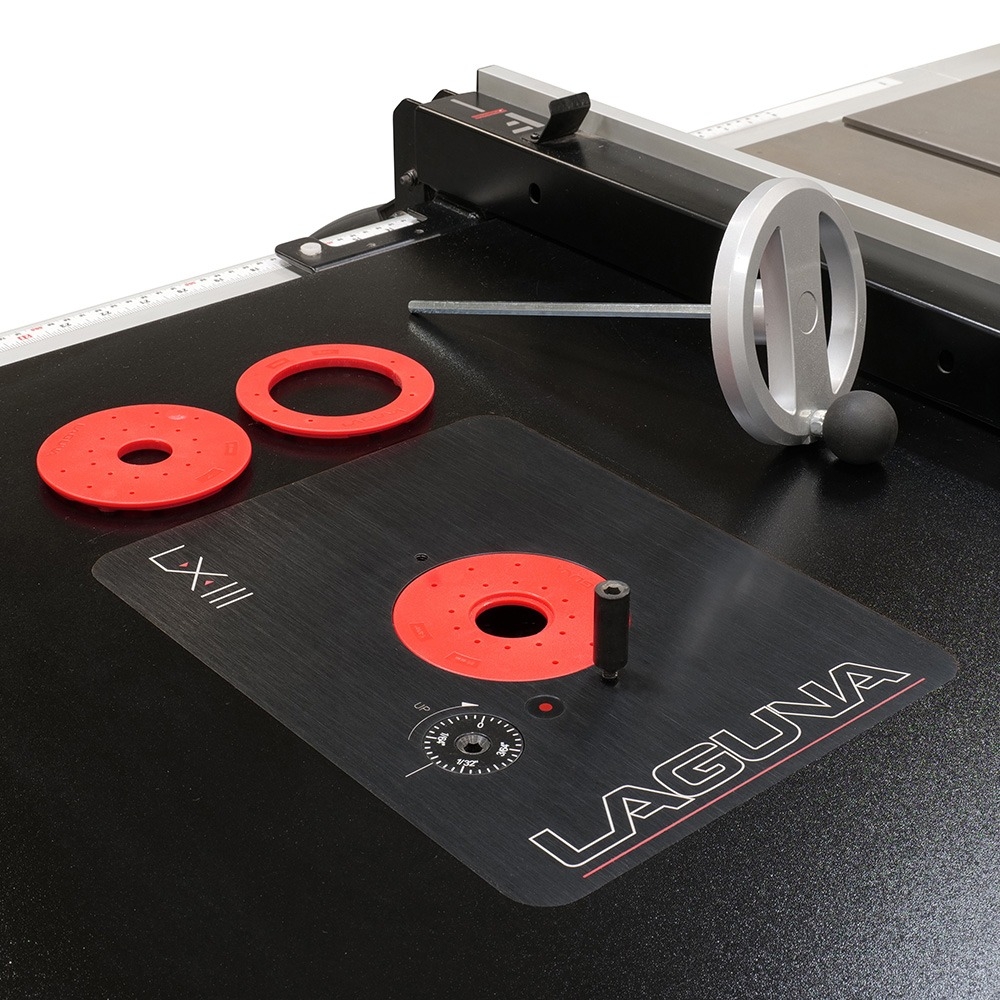

Insert rings are held in place magnetically and are removed with the press of a button for tool-free convenience
Leveling screws below the insert rings adjust them precisely flush with the top surface
Large 5'' handwheel makes it easy to lift routers of all sizes
Wide leveling pads positioned in all four plate corners provide more surface area than standard leveling screws
Side tensioners adjust the lift plate to the router table opening and prevent vibration
Includes starter pin for routing with bearing-guided bits when used without the fence
