Rockler Slab Flattening Jig, Full-Size

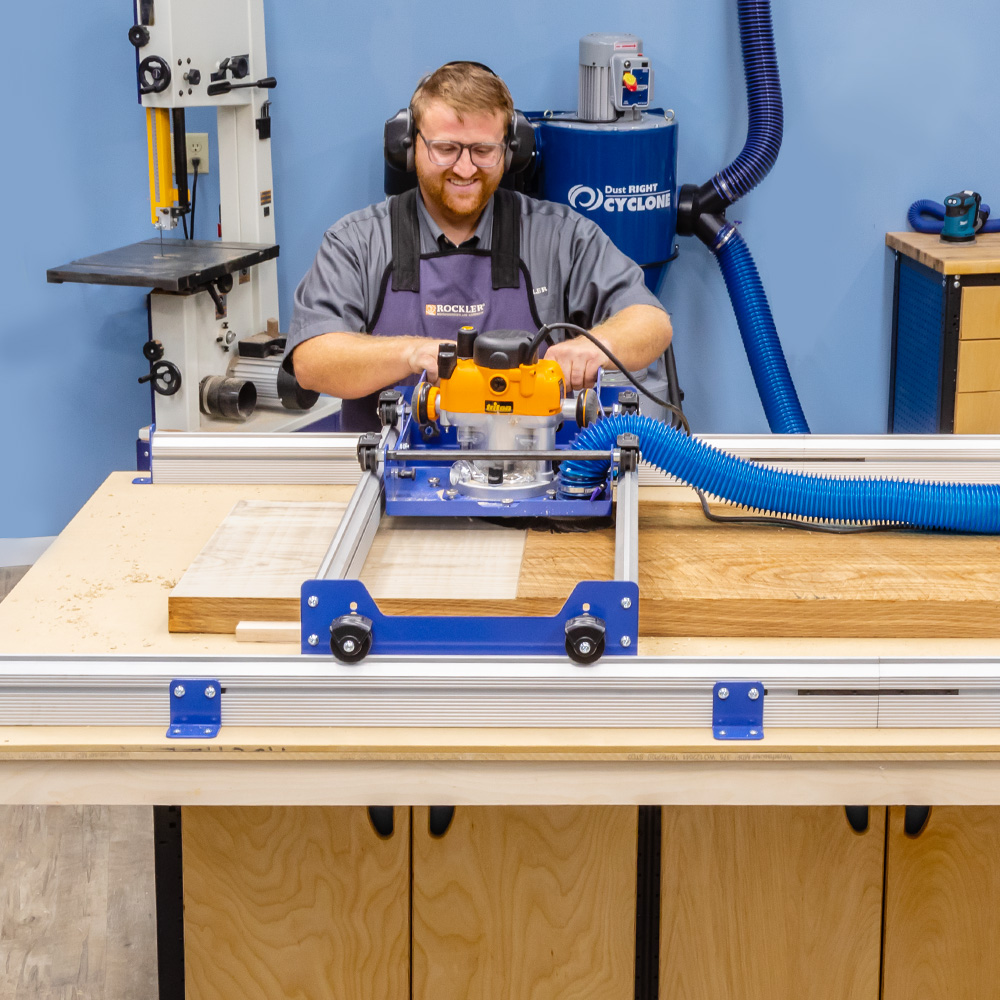

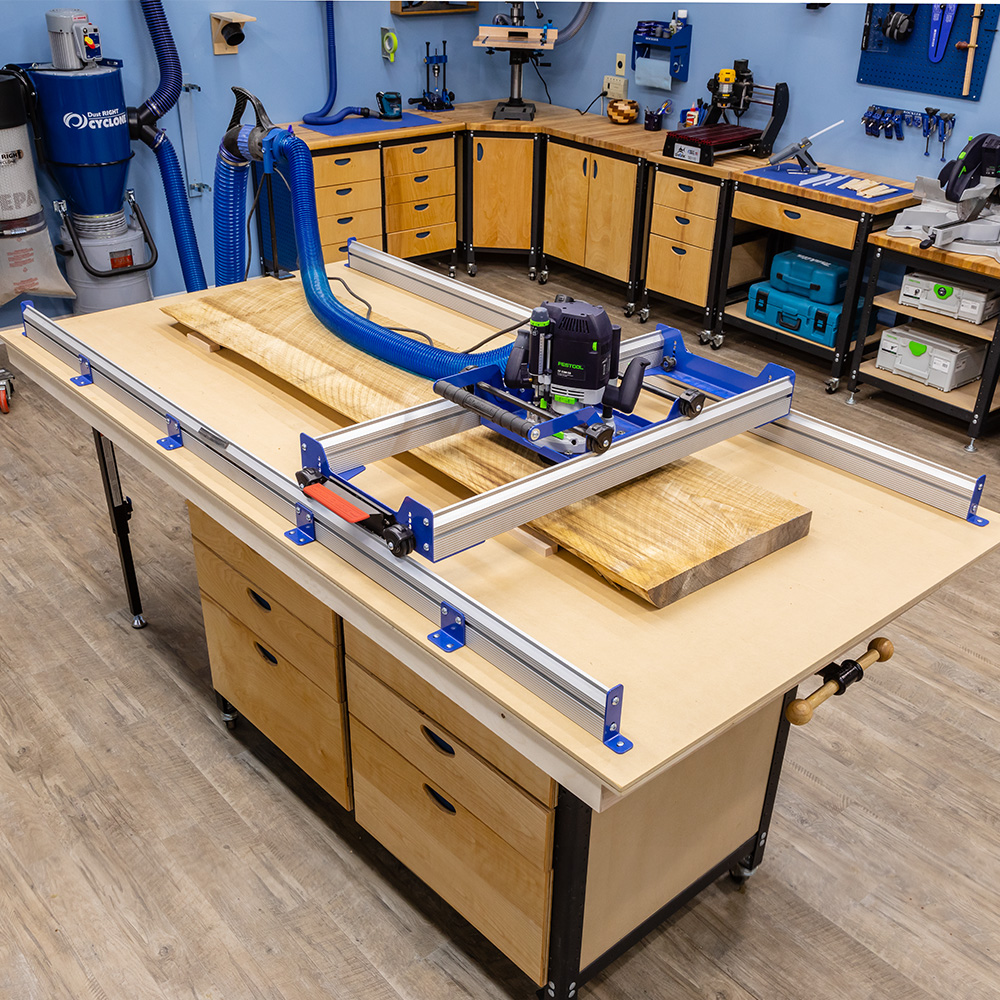

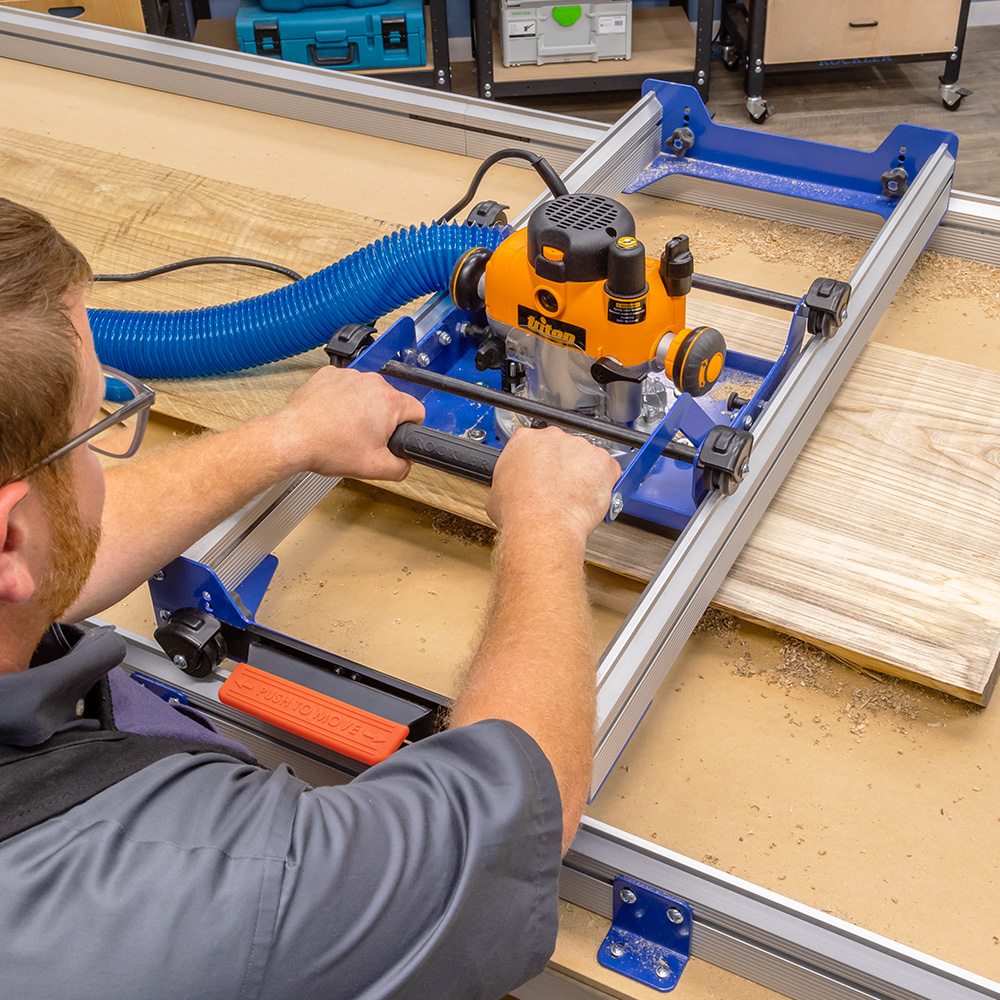

Building furniture with large slabs can yield truly one-of-a-kind projects that showcase incredibly beautiful grain. But conventional planers and jointers simply won't work when it comes to flattening and smoothing a large slab. That's where our Full-Size Slab Flattening Jig excels. Set it up on a 4' x 8' sheet of plywood and lay your slab down on the bed. The precision guide rails, along with the wheeled carriage and trolley let you guide your router over the entirety of the surface, machining it flat and smooth. Not only that, since you're using a router bit with a shearing action, tear-out is almost completely eliminated, leaving a surface that requires much less sanding.

Full-Size Slab Flattening Mill Details:

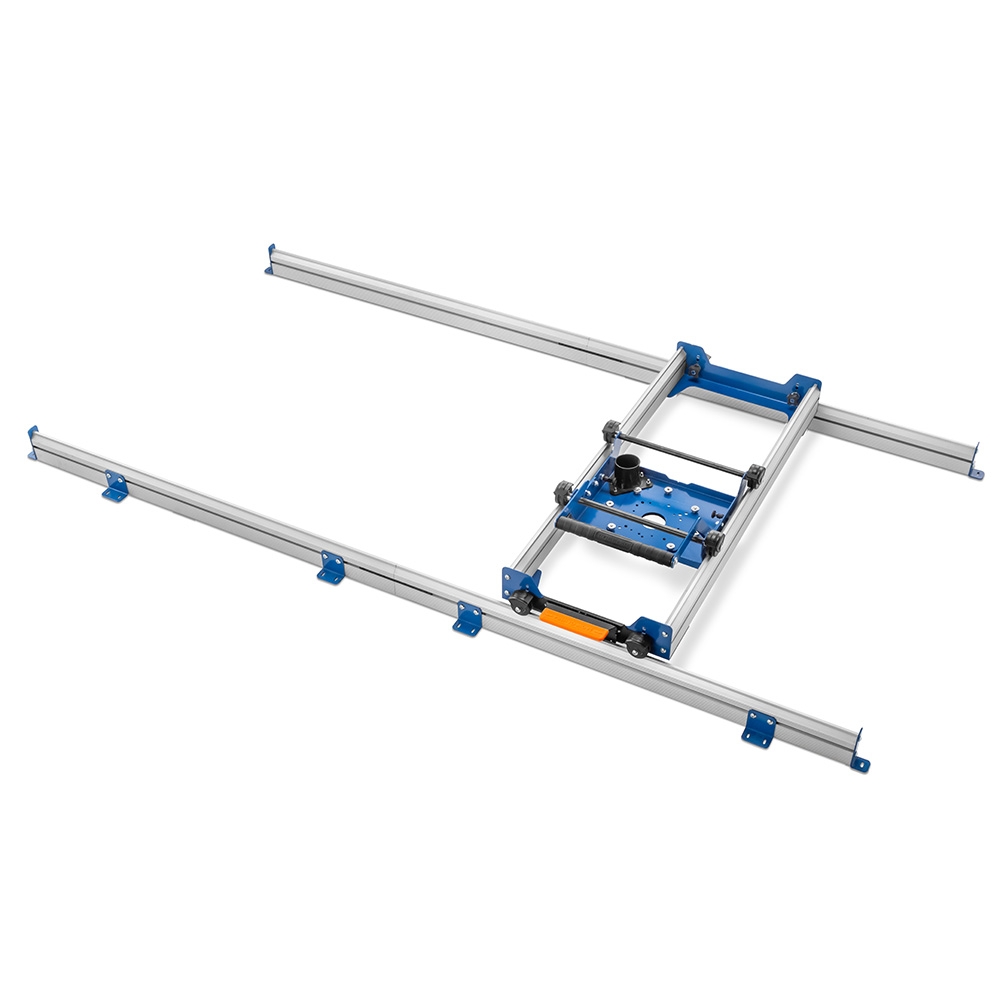

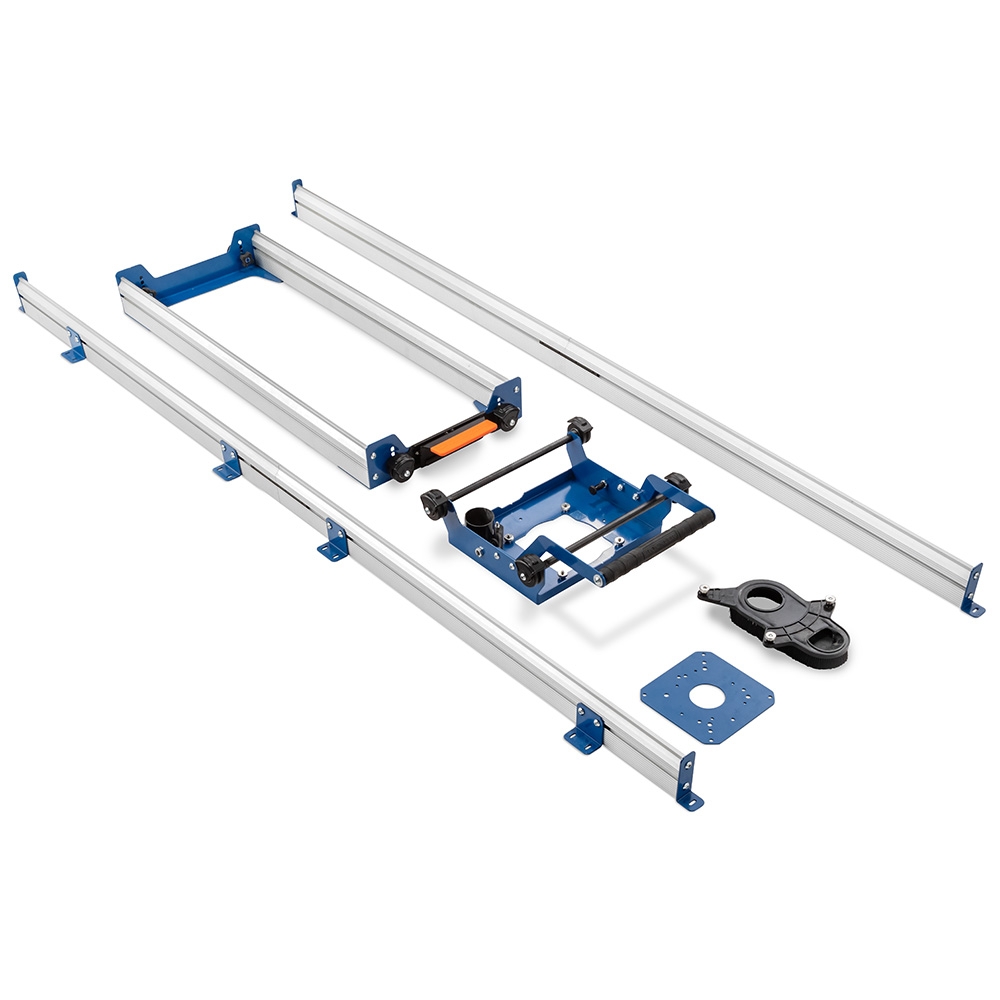

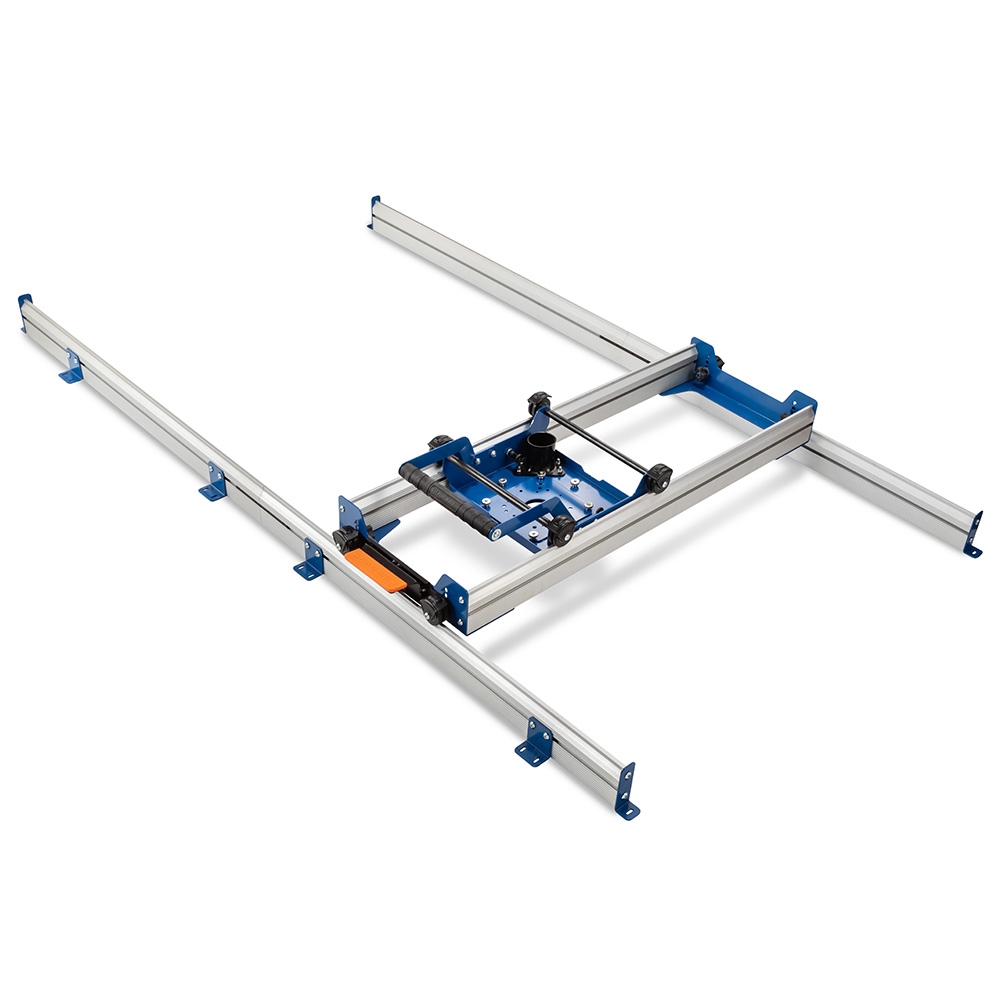

• Precision rails and smooth-rolling wheels move router carriage across and along the slab with minimal effort, creating a flat, smooth surface
• 3-1/2'' high extruded aluminum rails are straight and rigid for uniform results—top profile keep the wheels centered for smooth motion
• Long rails will flatten a slab up to 78-1/2'' long, while cross rails on trolley will flatten a slab up to 28-1/2'' wide

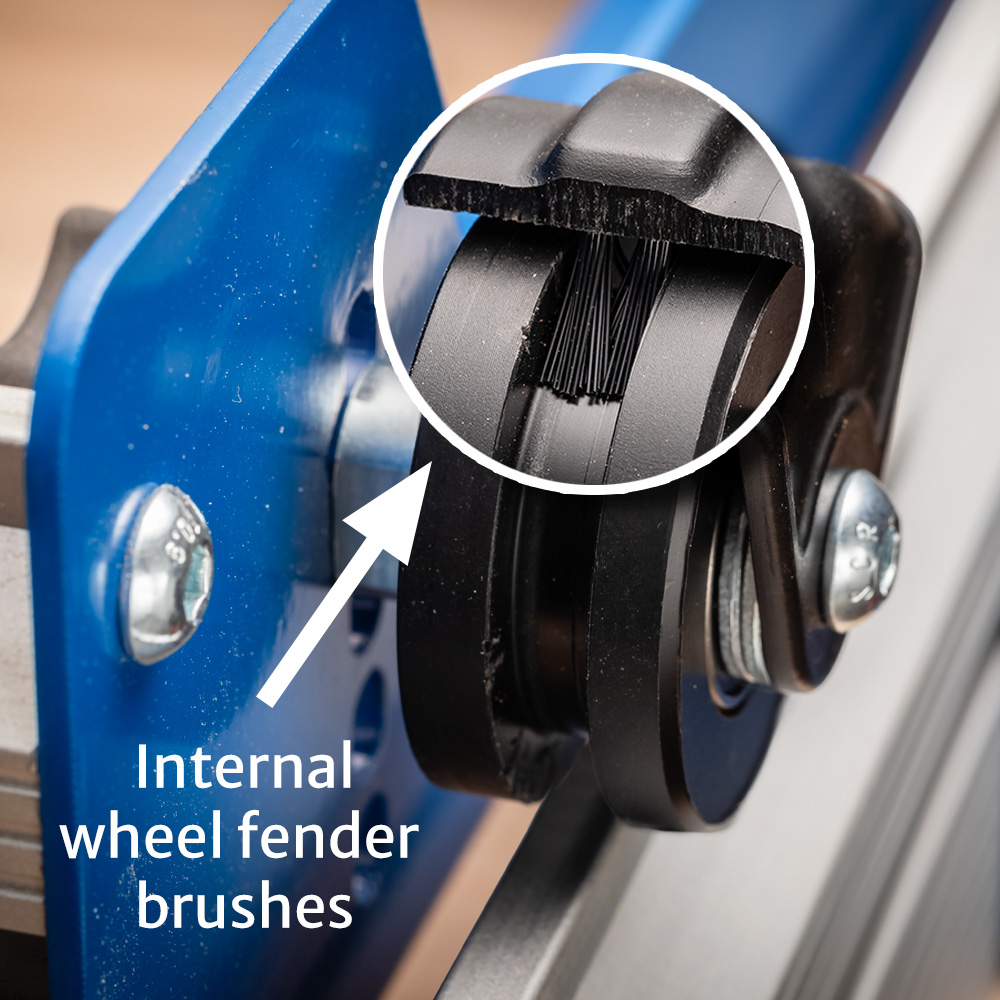

• Wheels have fenders with integral brushes to prevent dust buildup that could cause surface irregularities

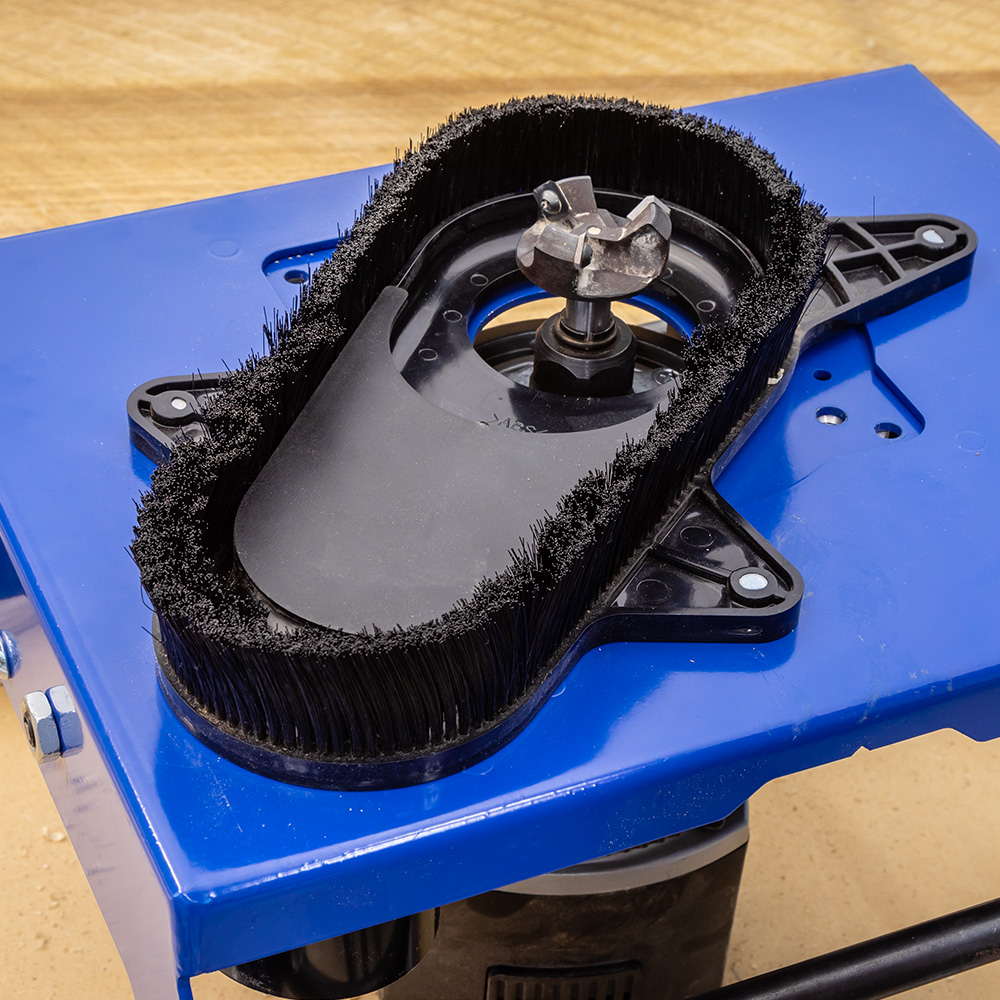

• Dust boot and port connect to 2-1/2'' dust hose to clear chips—essential when working with slabs!

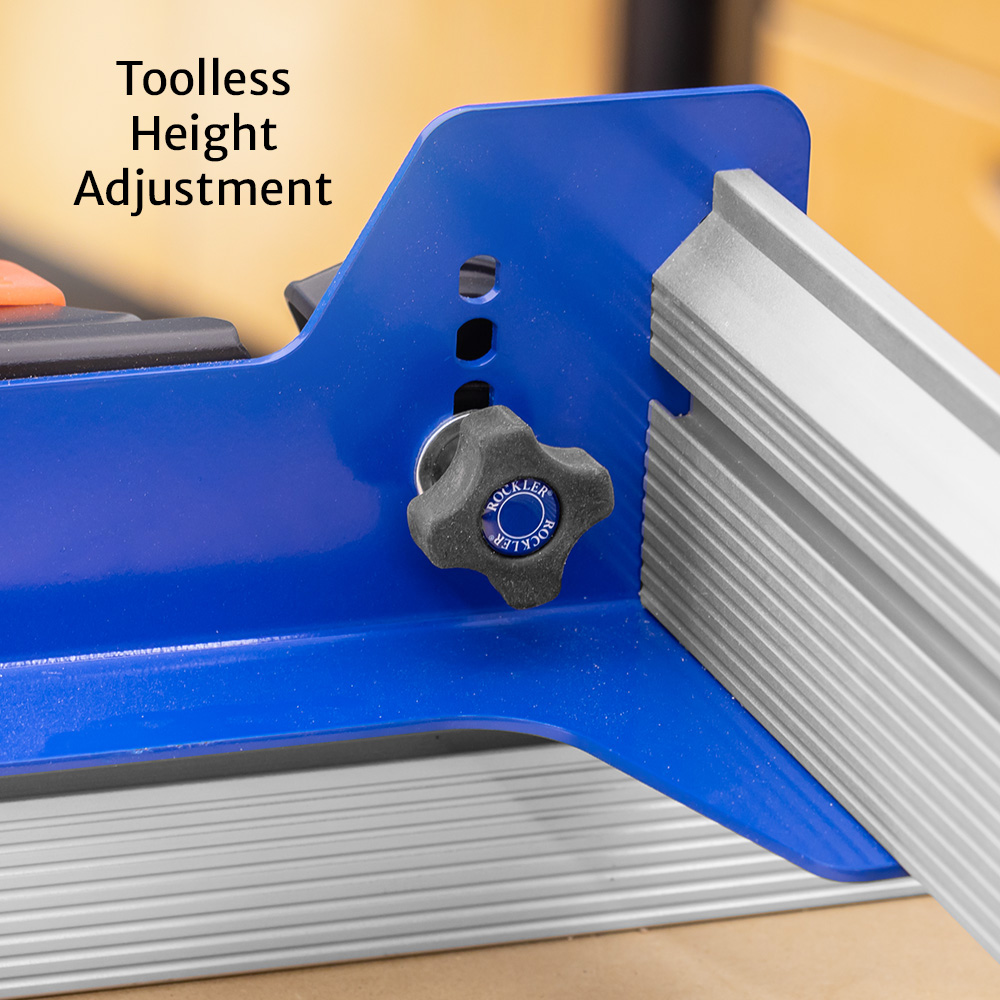

• Router trolley height can be adjusted within a 2'' range with four easy-to-grip knobs—no tools needed!

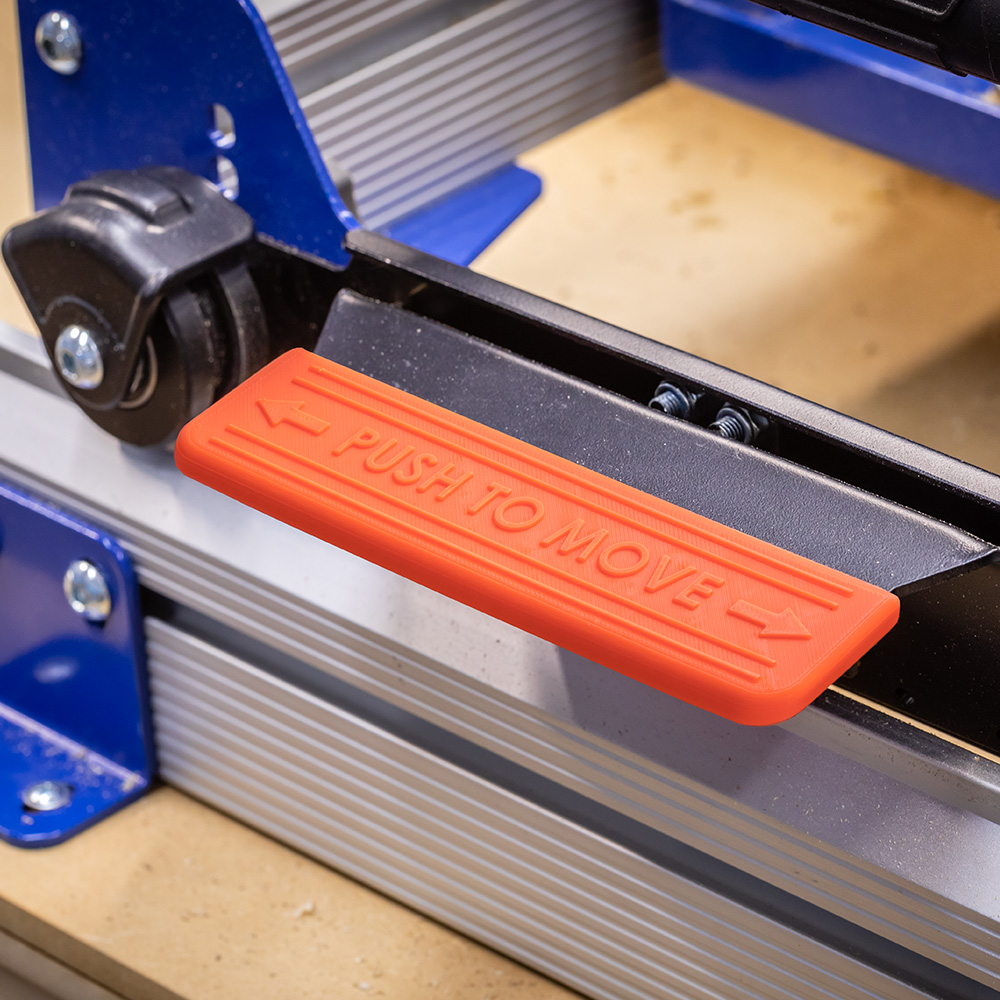

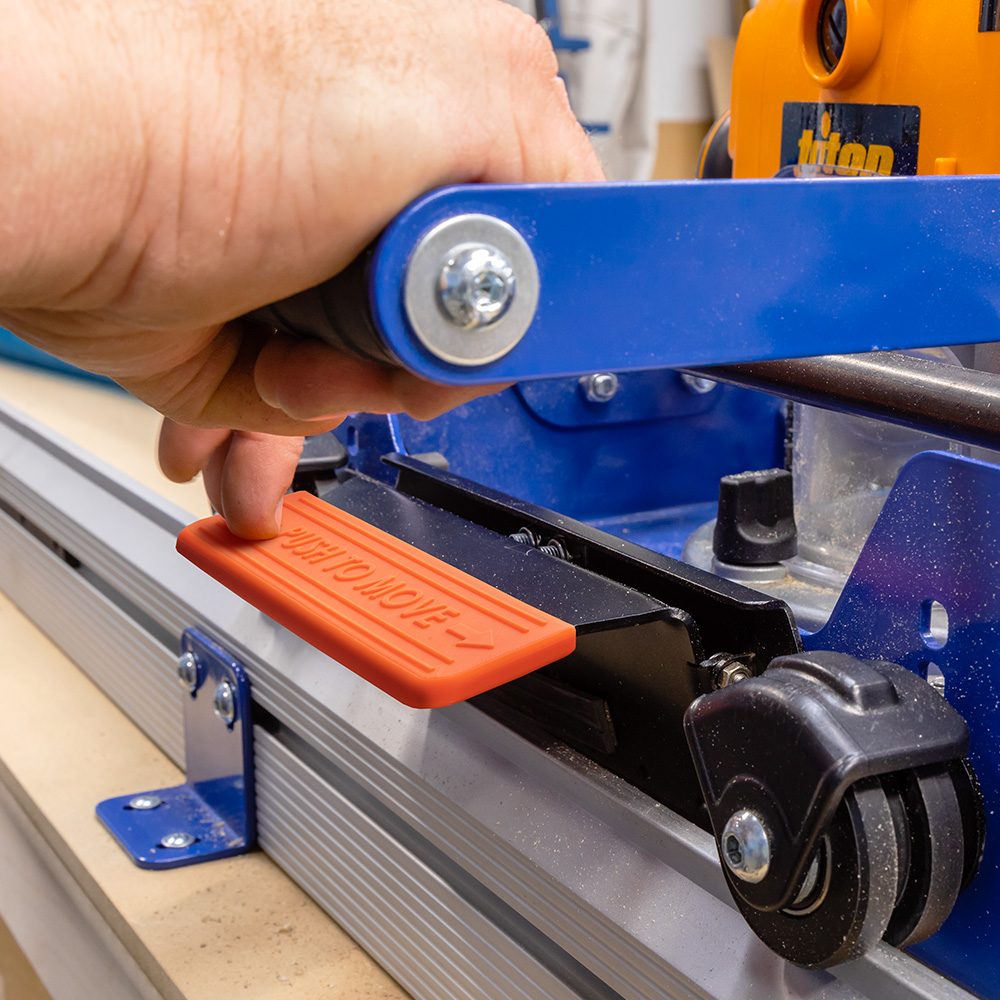

• Trolley incorporates friction pad to reduce side-to-side shifting as you move router carriage across workpiece

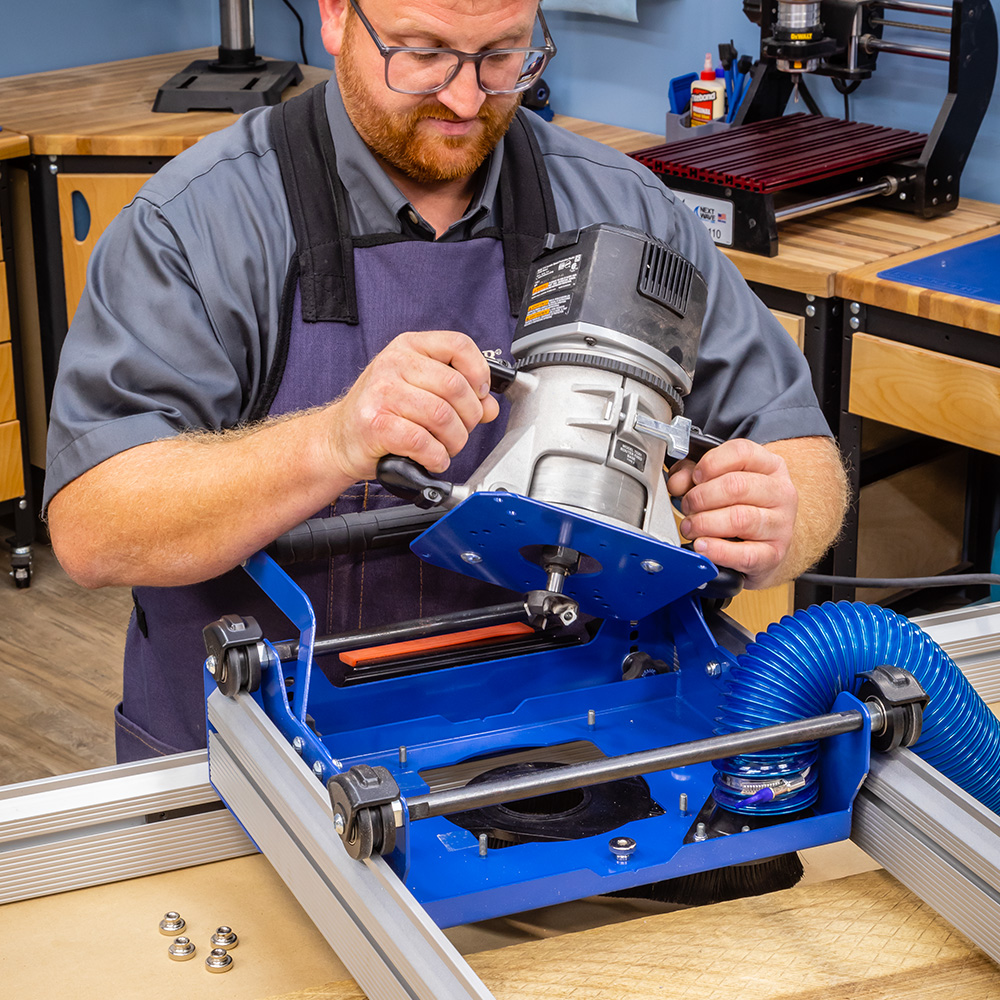

• Carriage features removable plate for easy mounting of router—plate secures to carriage with four knobs

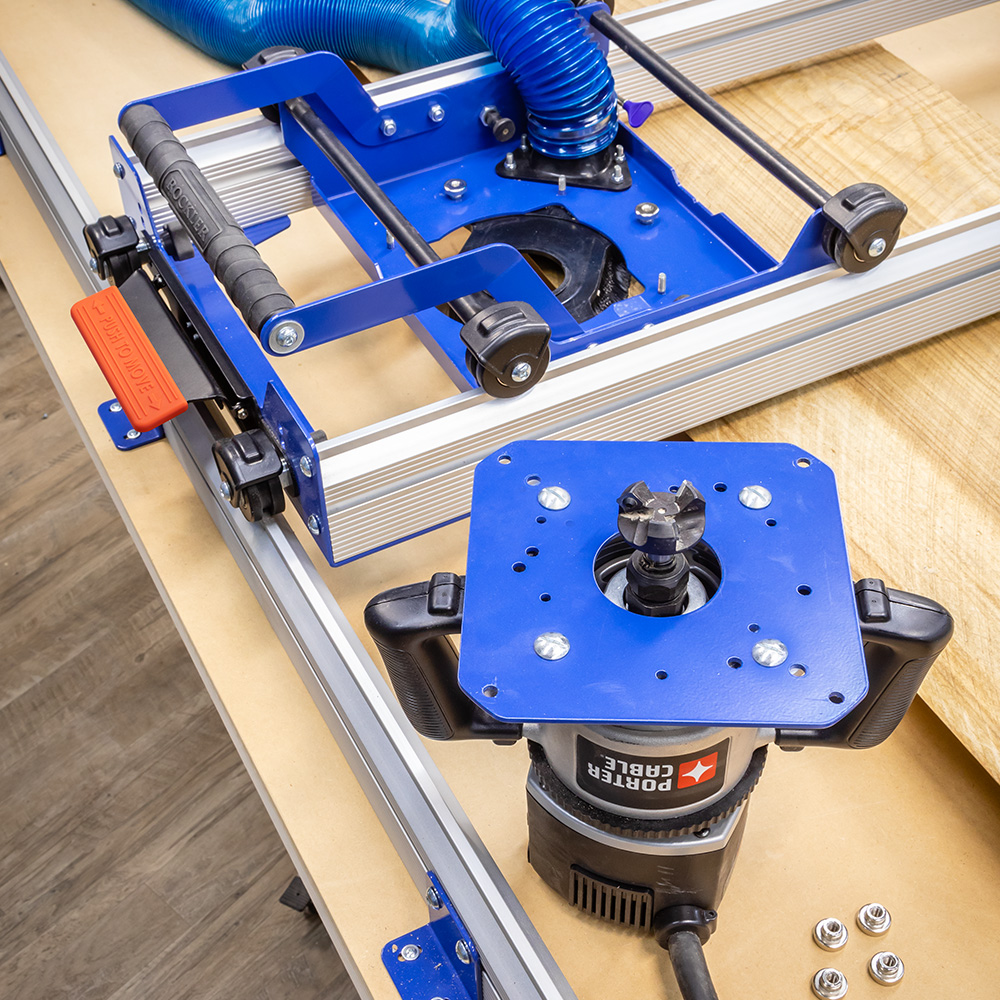

• Removable steel baseplate features hole patterns for many popular routers ranging from midsize to 3.25 HP
• Carriage secures to cross rails of trolley with spring-loaded pins so it won't inadvertently lift off

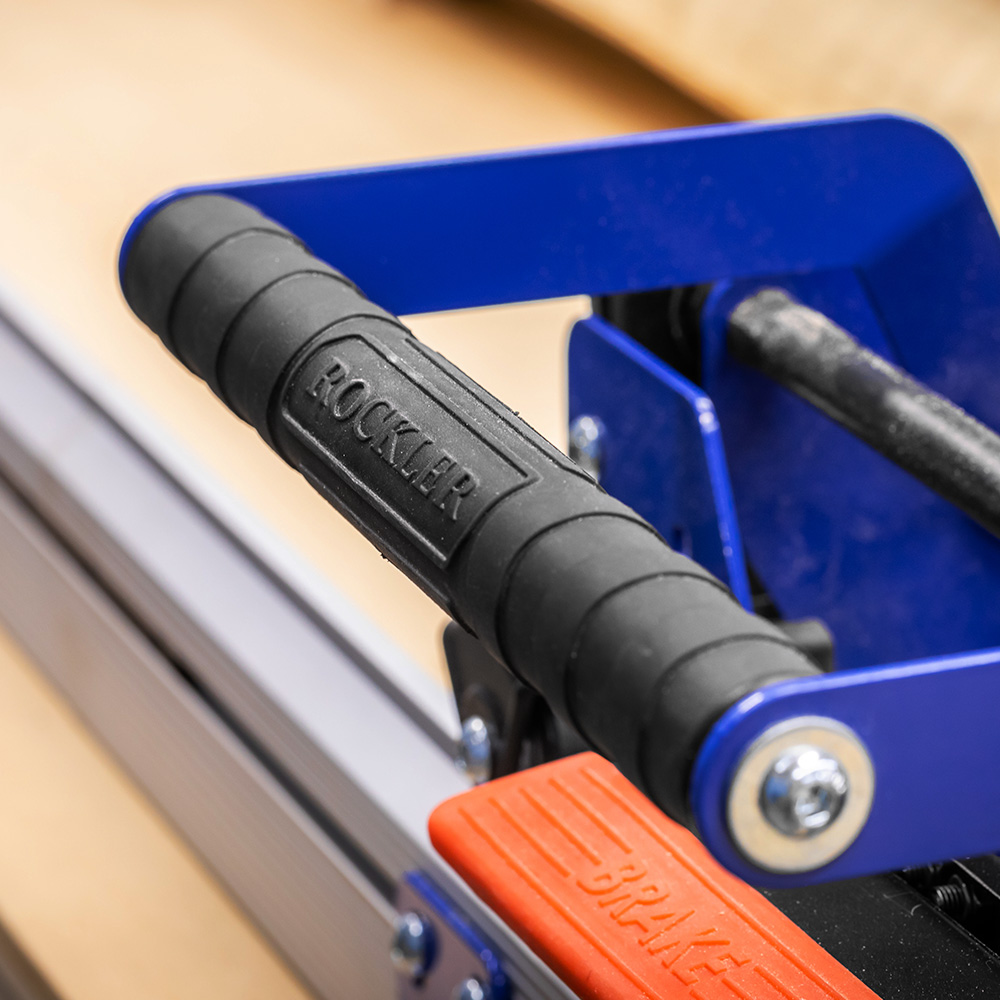

• Rubber-coated handle on carriage provides comfortable grip and keeps hands away from cutting area
• Adjustable features all have knobs—no other tools are needed

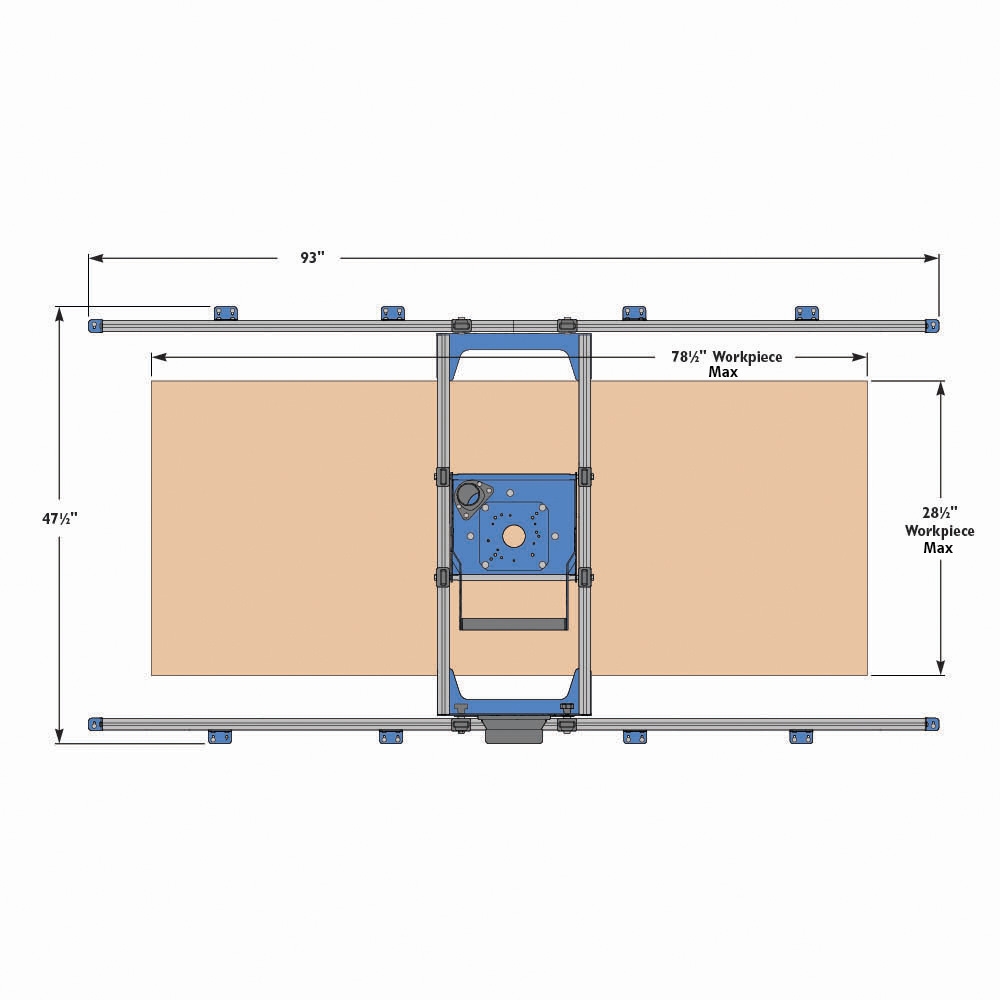

• Works for slabs up to 28-1/2'' wide x 78-1/2'' long x 2-3/4'' thick
• Use of 1/2'' shank spoilboard bit recommended

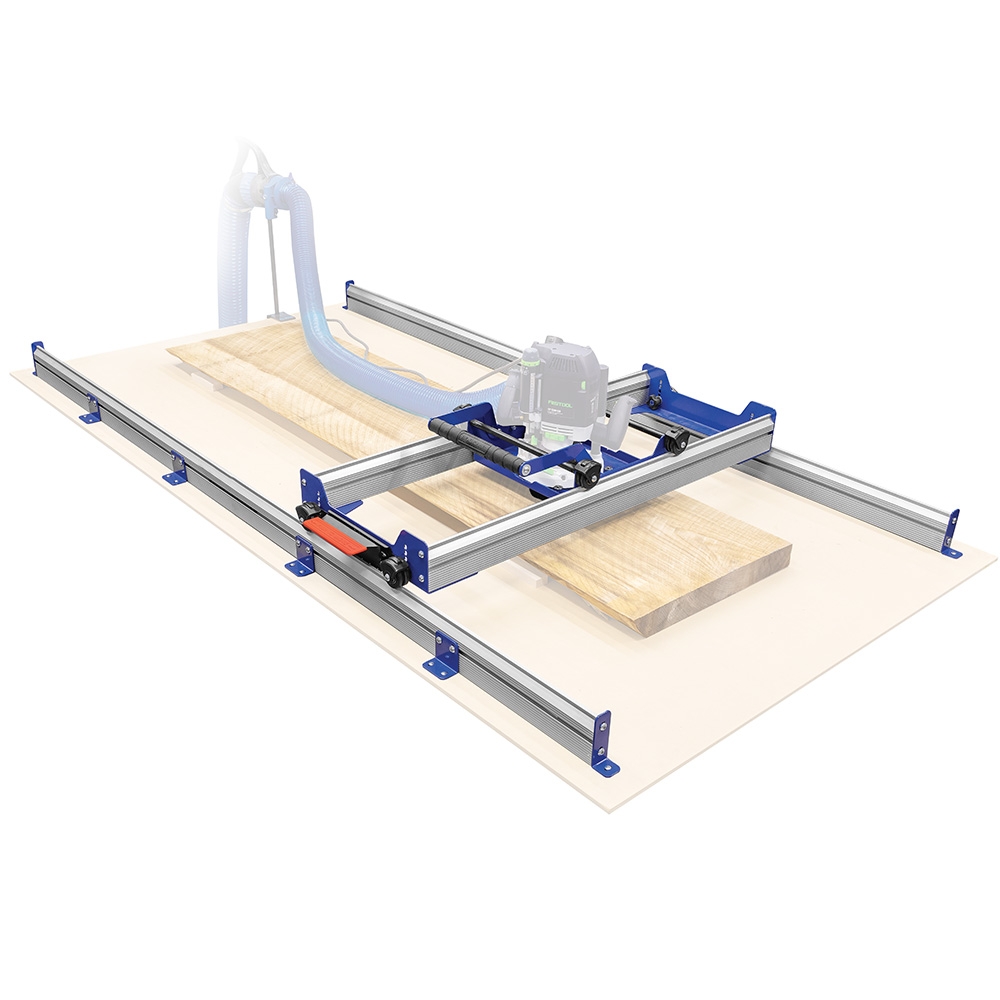

Important: To achieve satisfactory results, the Rails of the Full-Size Slab Flattening Jig must be installed on a flat, even surface. A 4' x 8' work surface is required—we recommend using a full sheet of 3/4''-thick plywood.

Baseplate is pre-drilled for the following routers:

• Bosch 1617, 1618, 1619-1619EV
• Craftsman Standard
• DeWalt DW616, DW618, DWE625
• Festool OF 1400, OF 2200
• Freud FT2000 FT1700E 1702VCEK
• Hitachi M12VC
• Makita 1100 series
• Porter-Cable 100, 690 series, 890 series, 7529 and 8529
• Porter Cable (3-1⁄4 HP)
• Skil RT 1322-00 and RT1323-00
• Triton (3-1/4 HP)
