Rockler JIG IT Undermount Drilling Guide

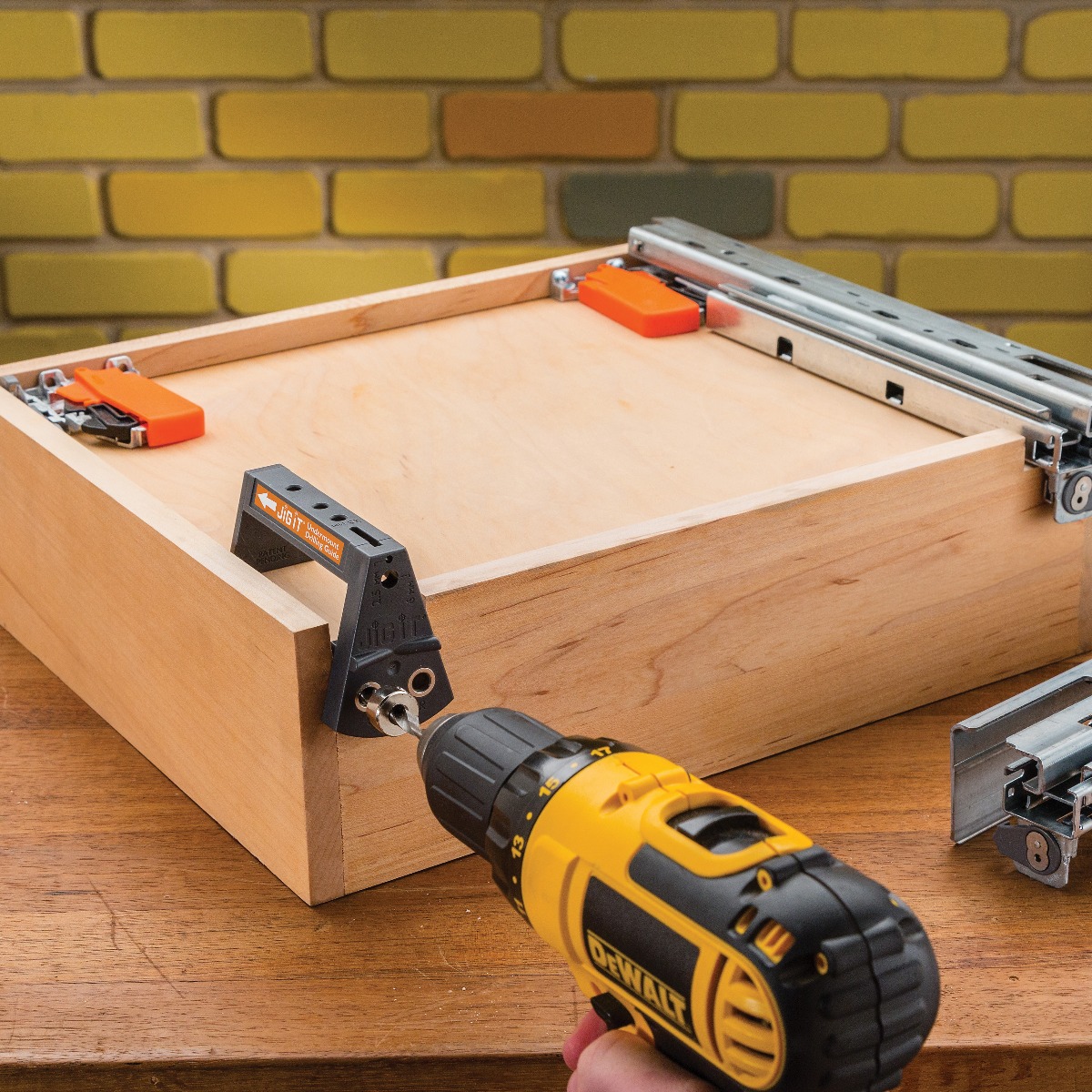

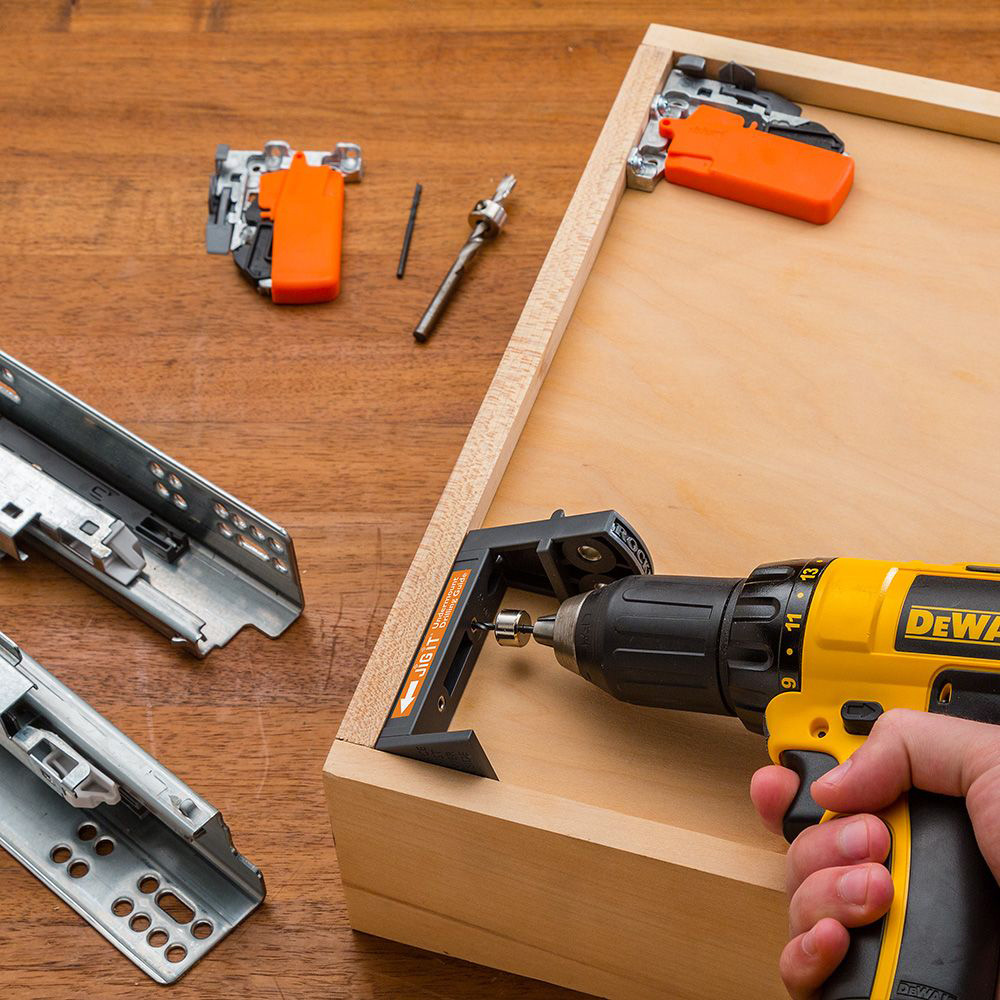

To install Blum's totally concealed drawer slides, each drawer box must be drilled with six precise holes. The Undermount Drilling Guide makes that process fast and easy. Just butt it up to the front corners to drill the smaller angled holes for the locking devices. Not only will the location be spot-on, but the holes will be angled to 15° and your bit won't wander. For the larger holes in the rear, just hook it over the notch. The end result is a drawer box that clicks perfectly into place on the slides, every time. As of May 2020 jig works with Blum Tandem Plus, Tandem Edge and Movento drawer slides.

Features:

• Perfectly positions angled pilot holes for locking devices and holes for rear hooks of Blum concealed slides
• Integrated depth guides and stop collars ensure proper drilling depths
• Fast setup and guaranteed accuracy without measuring and marking

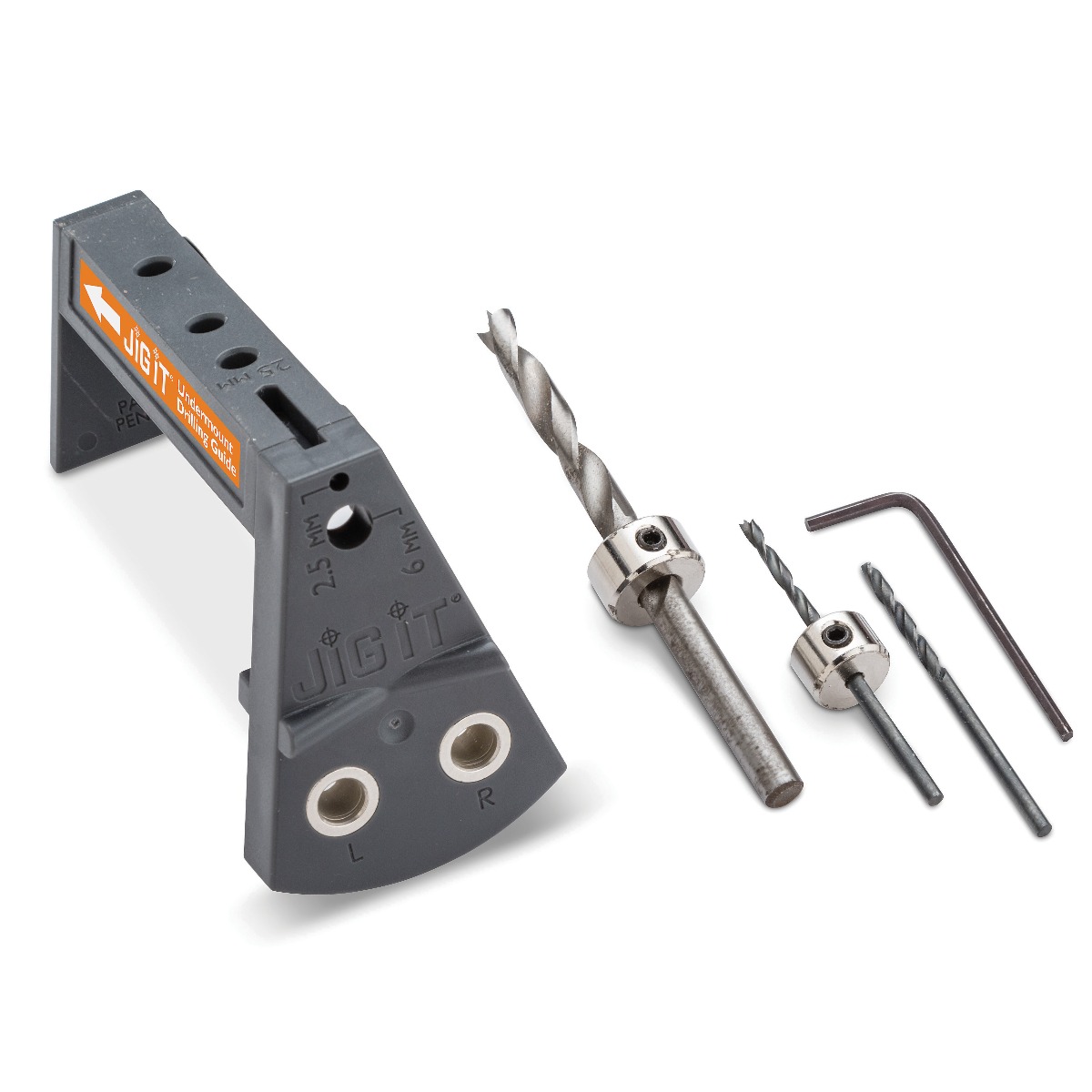

• Includes two 2.5mm drill bits, one 6mm drill bit, two stop collars and a hex wrench
• Durable glass-filled ABS plastic with hardened steel inserts
• Works with Blum Tandem Plus, Tandem Edge and Movento drawer slides
