Laguna Revo 10|14 Benchtop Lathe

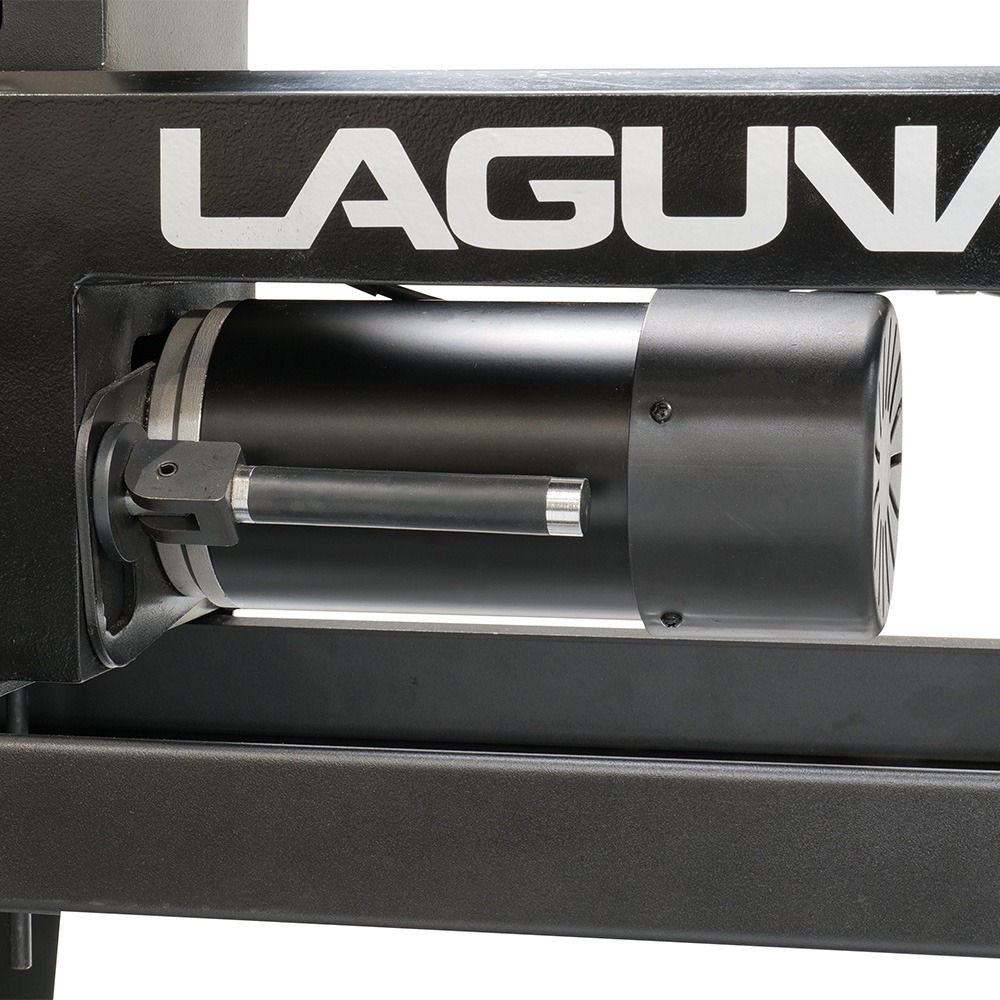

Benefitting from the proven pedigree of the larger lathes in Laguna's Revo line, this 10|14 Benchtop Lathe includes similar performance and features in a compact 10'' format. Its Pulse Width Modulation (PWM) 1HP induction motor delivers constant torque across a variable-speed range, so it will never starve for power, even when you're turning at low speed or making heavy cuts. Changing speeds within each of the three pulley speed ranges is as easy as twisting a dial. The lathe offers 10'' of swing capacity for turning bowls or other large projects and up to 14'' between centers for spindle work. The 6'' tool rest has a hardened-steel edge that resists nicks while providing a smooth contact surface for tools. And thanks to a protruding nose cone on the headstock, you'll enjoy improved tool access when turning the backsides of large workpieces mounted on a faceplate or scroll chuck.

Expand the lathe's spindle-turning capacity to 24'' by adding an optional cast-iron bed extension (#78342, sold separately).

Laguna Revo 10|14 Benchtop Lathe Details:

• Powerful Pulse Width Modulation (PWM) induction motor maintains consistent torque at any speed
• Headstock nose cone provides wider spindle bearing spacing for durability and improves tool clearance around large workpieces
• Rugged cast-iron bed adds mass and dampens vibration
• Electronic variable-speed control
• Ergonomic control panel with easy-to-read digital speed display
• Spindle reverses travel for easier sanding
• 6'' tool rest with hardened-steel edge resists nicks and ensures slippery smooth tool use
• Luxury live center and spur drive with on-board storage
• Three-pulley drive with poly-groove drive belt
• Convenient quick belt tension release and two-door belt access
• Viewing window for checking belt position
• Durable heat-treated drive spindle
• 24 spindle indexing positions
• Tailstock quill is etched with inches and millimeters
• Large, comfortable control handles on the banjo and tailstock
• Push-button spindle lock; on-board accessory tool storage
• Auxiliary 120-volt outlet and predrilled mounts for installing an optional LED work light
