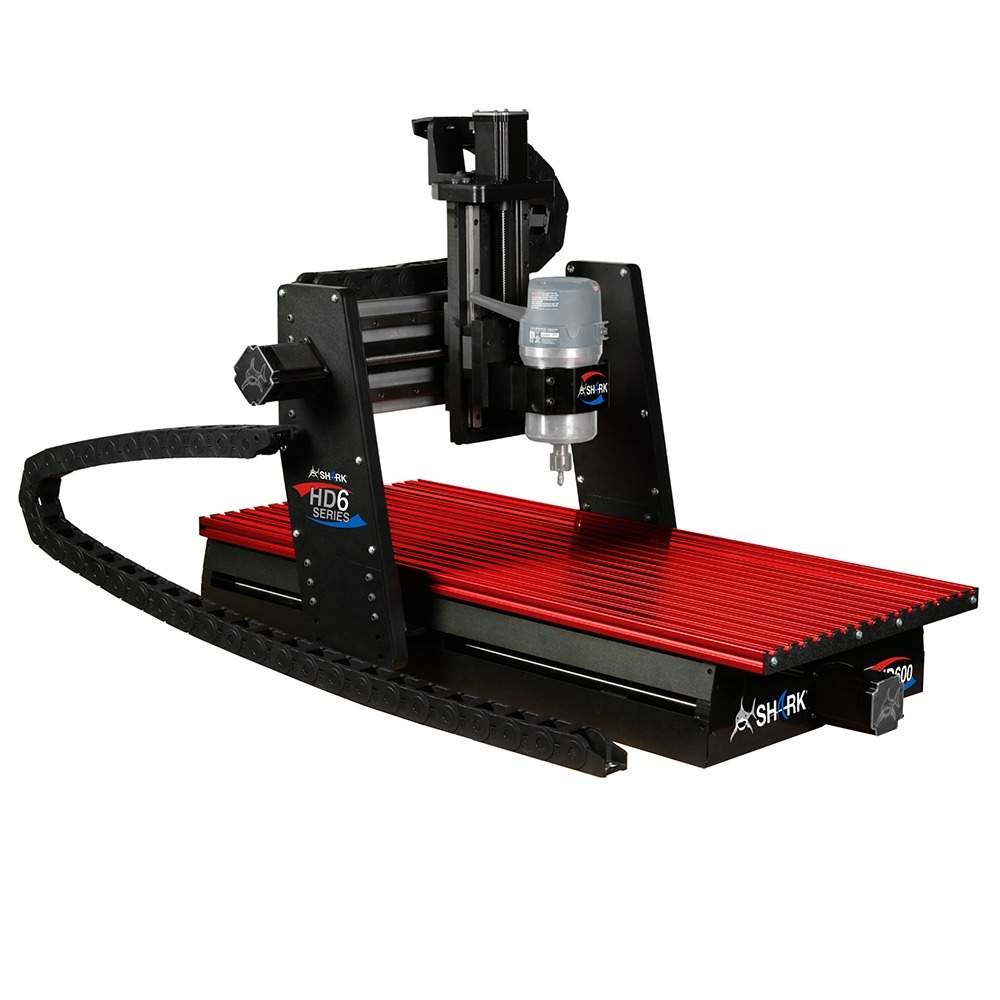

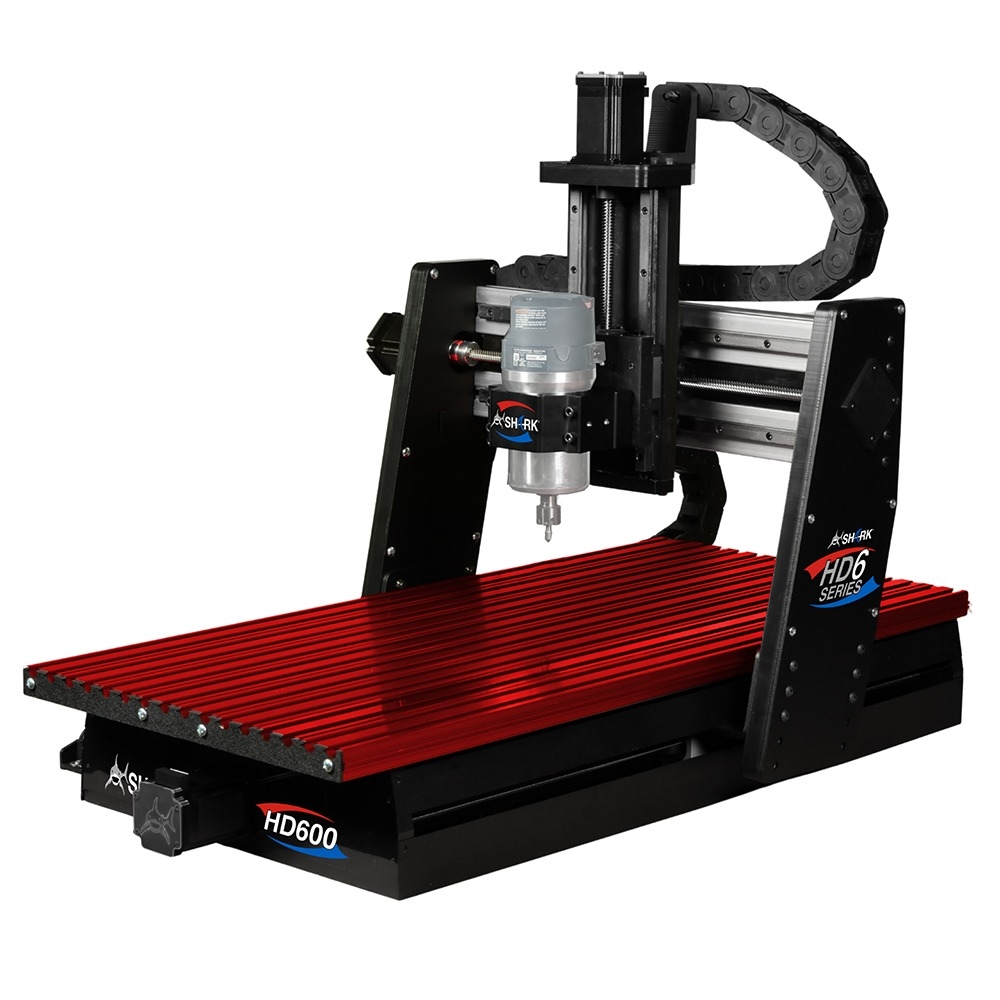

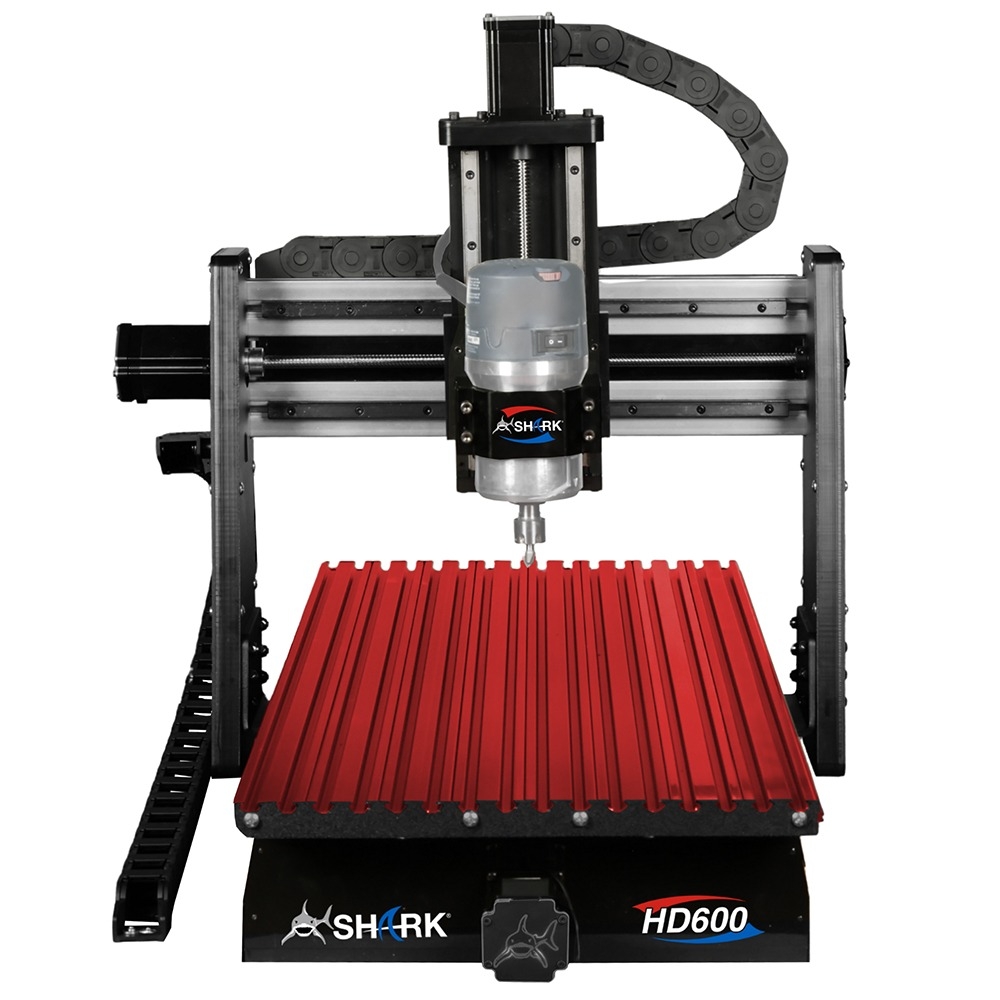

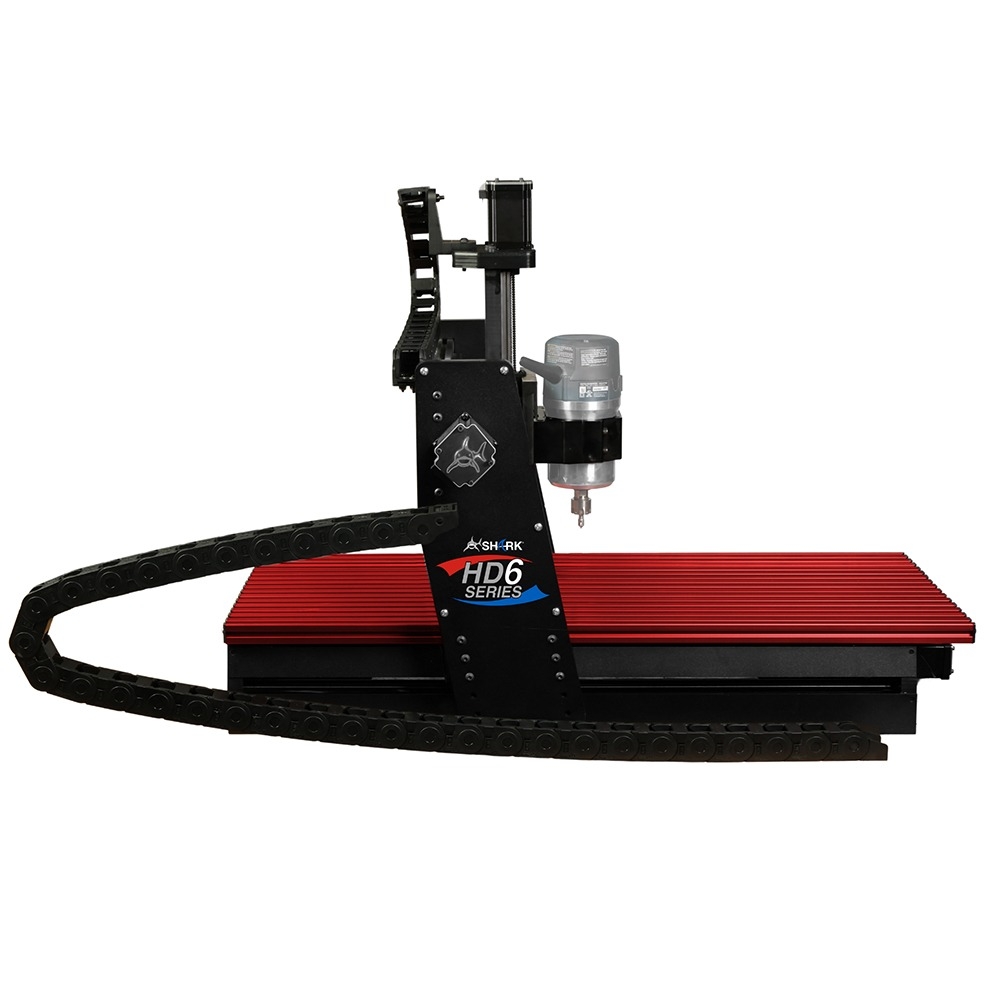

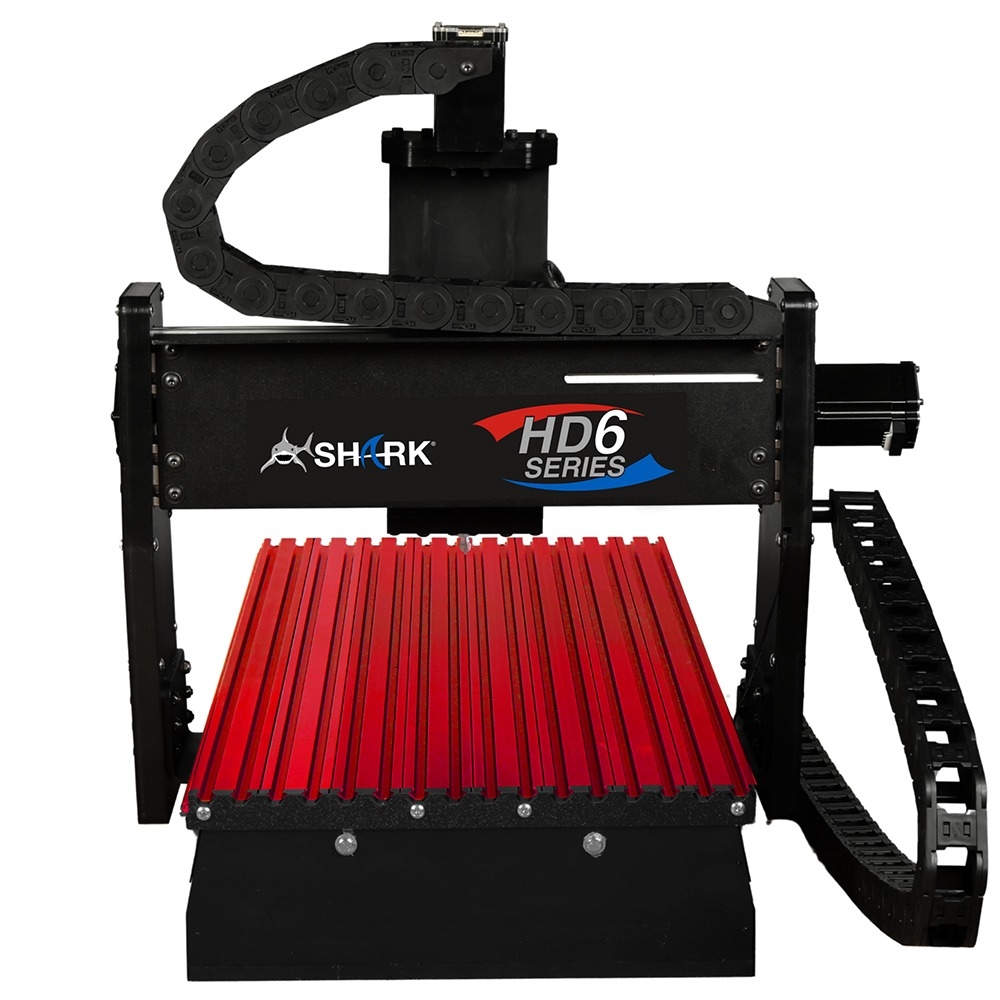

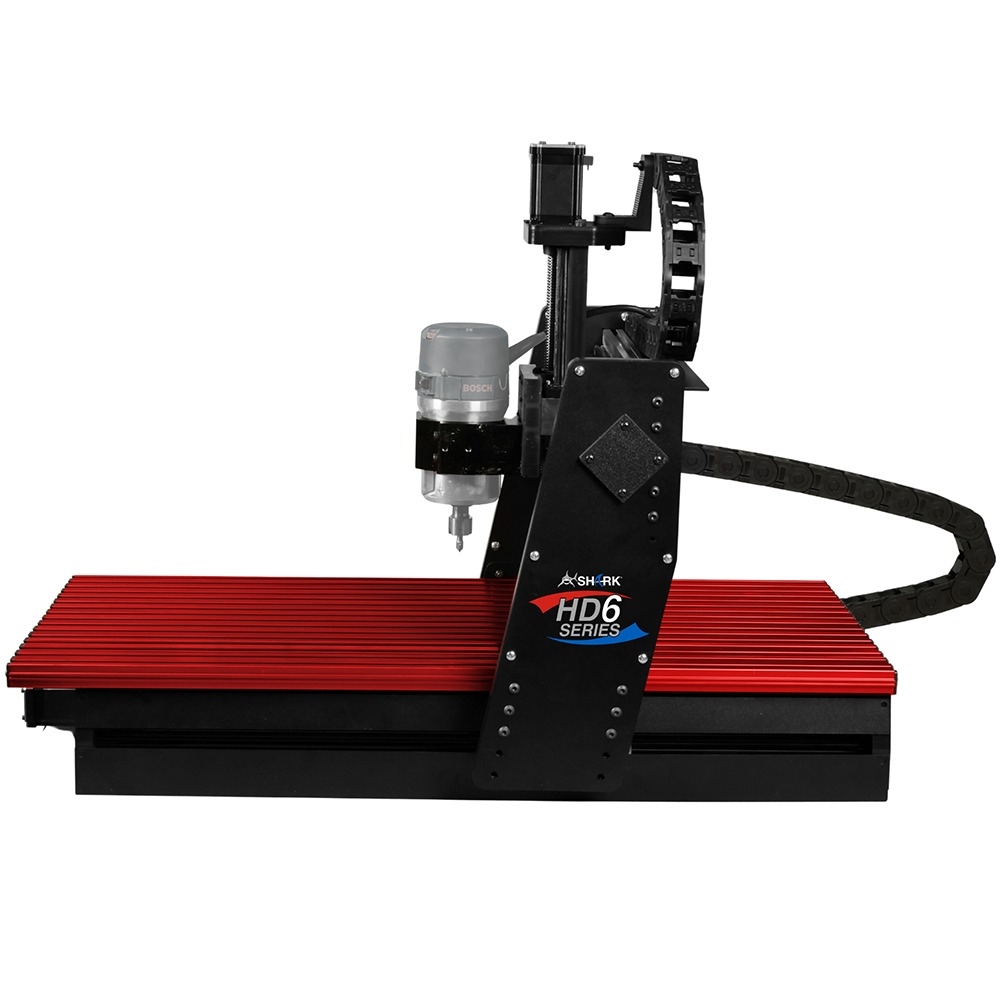

Next Wave CNC Shark HD600 Standard

Building on the proven success of Shark HD5 models, this Shark HD600 Standard delivers powerful next-level performance in both home workshops and demanding production environments. It is engineered with industrial-grade components including a reinforced aluminum/steel gantry, interlocking 16'' x 36'' aluminum table, linear rails and anti-backlash lead screws. It also works with some of today's best software options. Vectric VCarve Desktop comes standard, along with Next Wave's exclusive Virtual Zero Unlimited. It maps the surface of your material by taking an unlimited number of reference points and uses them to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed workpiece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.

The HD600 Standard can be pendant or computer-controlled and is perfect for projects such as carving plaques, signs, ornamental boxes, and milling precision parts from wood, soft metals or plastics. This CNC router also offers 3D carving capability with a 3D model library included. You can cut beautiful relief carvings and intricate inlays plus exquisitely detailed engravings.

Proudly made in the USA, the Shark HD600 Standard works with a variety of popular 3.5''-diameter router motors (sold separately) or can be upgraded to one of Next Wave's precision spindle kits (sold separately). Whether you’re just starting your CNC journey or upgrading to a more powerful platform, the Shark HD600 Standard puts precision, durability and flexibility at your fingertips.

Next Wave CNC Shark HD600 Standard Details:

• Sturdy 16'' x 36'' table with linear gantry rails for uncompromising stability
• All-new heavy-duty gantry design for superior accuracy and long-term reliability
• Upgraded precision lead screws that allow for higher cutting speeds
• Precision-ground, vibration-dampening couplers ensure smoother operation and improved cut quality
• Larger drag chain to accommodate both cables and spindle hoses for a cleaner, more organized workspace
• Redesigned aluminum X-box with improved access for tramming and maintenance
• Removable side skirts with magnetic interlocks simplify cleaning and access while maintaining safety
• Aluminum interlocking slotted table allows highly customizable clamping
• Upgraded 36V controller electronics for improved cooling and power delivery to the motors, enabling speeds up to 600 IPM (up to 1,000 IPM when upgraded to the optional closed-loop system)
• Built to handle larger 2.25 HP routers with 3.5'' barrel diameter (see list below)
• Accepts 2HP or 3HP Next Wave spindle kits (sold separately)
• Includes Vectric VCarve Desktop and Ready2Control software with Virtual Zero Unlimited; also compatible with VCarve Pro, Aspire, Fusion 360, Mastercam and more
• Can be controlled with the touch-screen pendant for convenience; to keep your computer away from the dust, just transfer your project to a USB drive and plug it into the LCD pendant
• Can also be computer-controlled to take advantage of the Virtual Zero Unlimited, which adjusts your design to fit curves and angles that would be virtually impossible on other brands of machines (computer and flash drive not included)
• Requires a PC computer with USB 2.0 port (not included)
• US-based technical support
• 2-year factory warranty
• Made in USA

Next Wave CNC Shark HD600 Standard is fully compatible with the following routers (sold separately):

• Bosch 1617 and 1618
• Porter Cable 890 Series
• DeWalt 610, 616, 618
