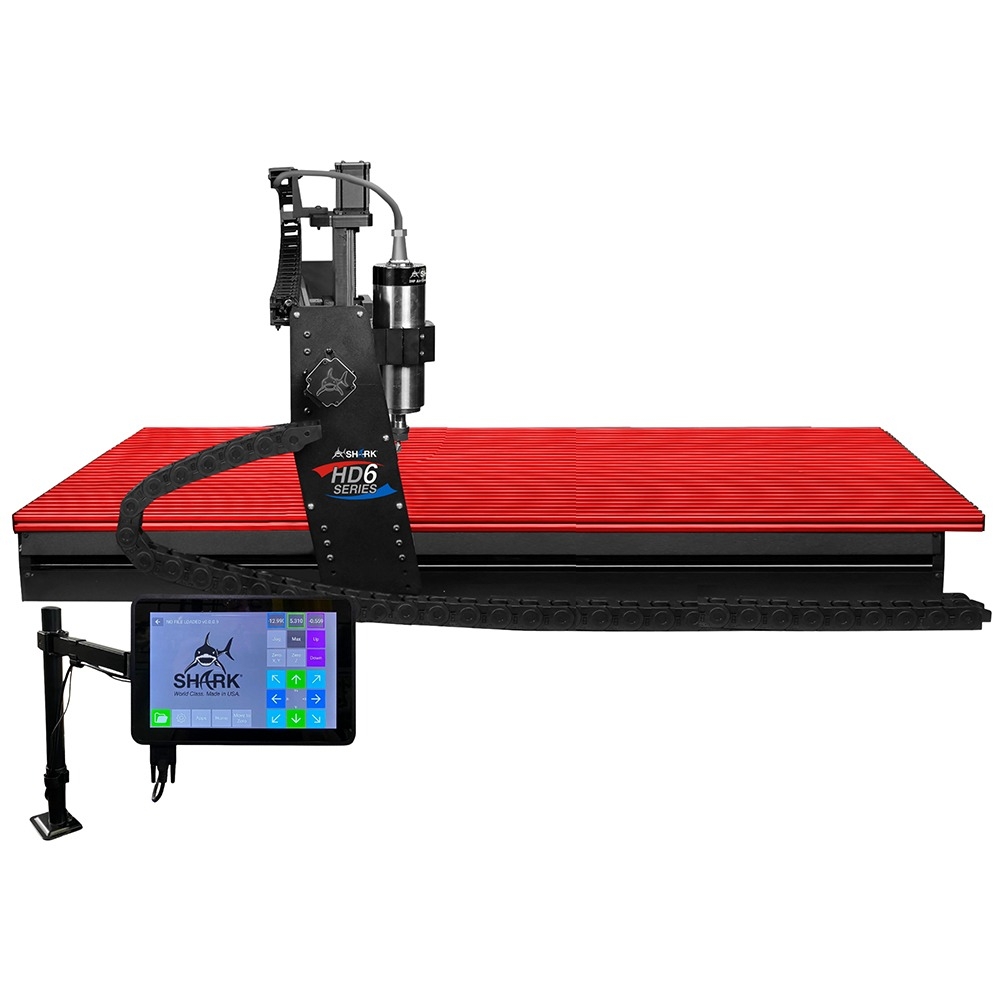

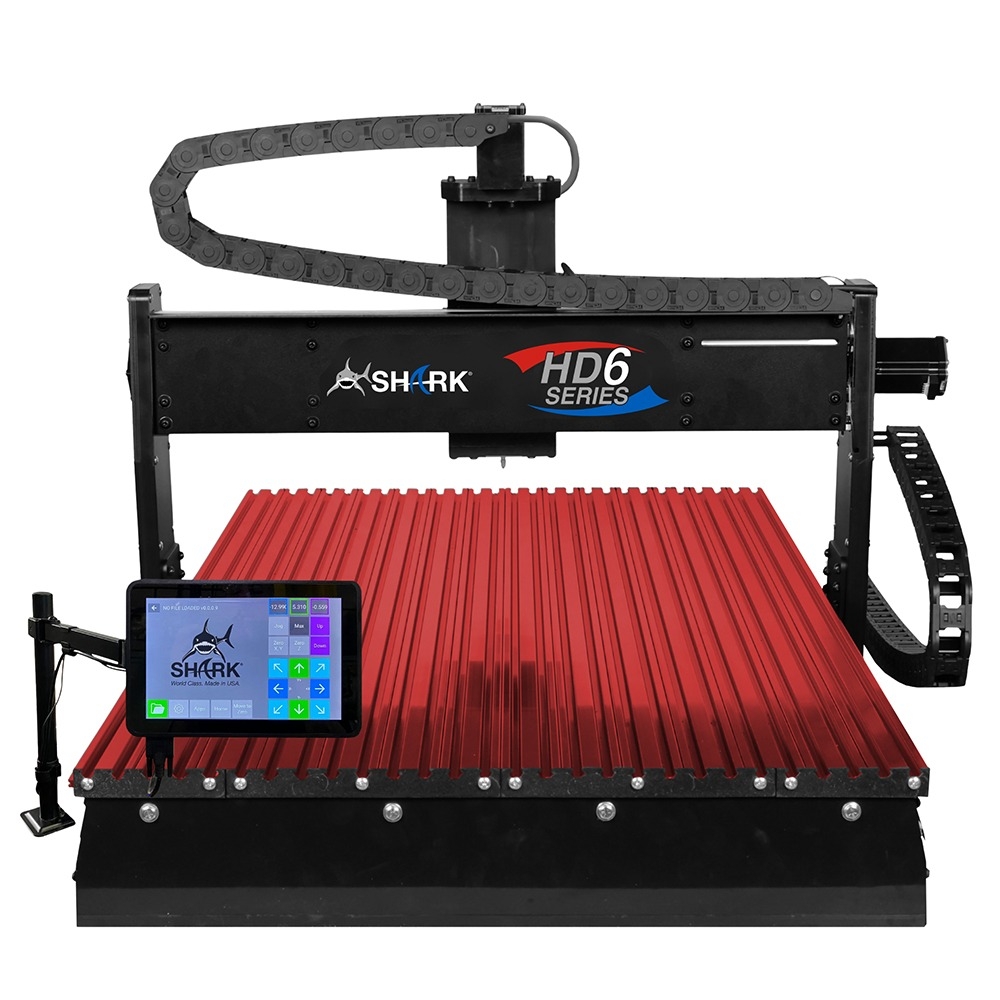

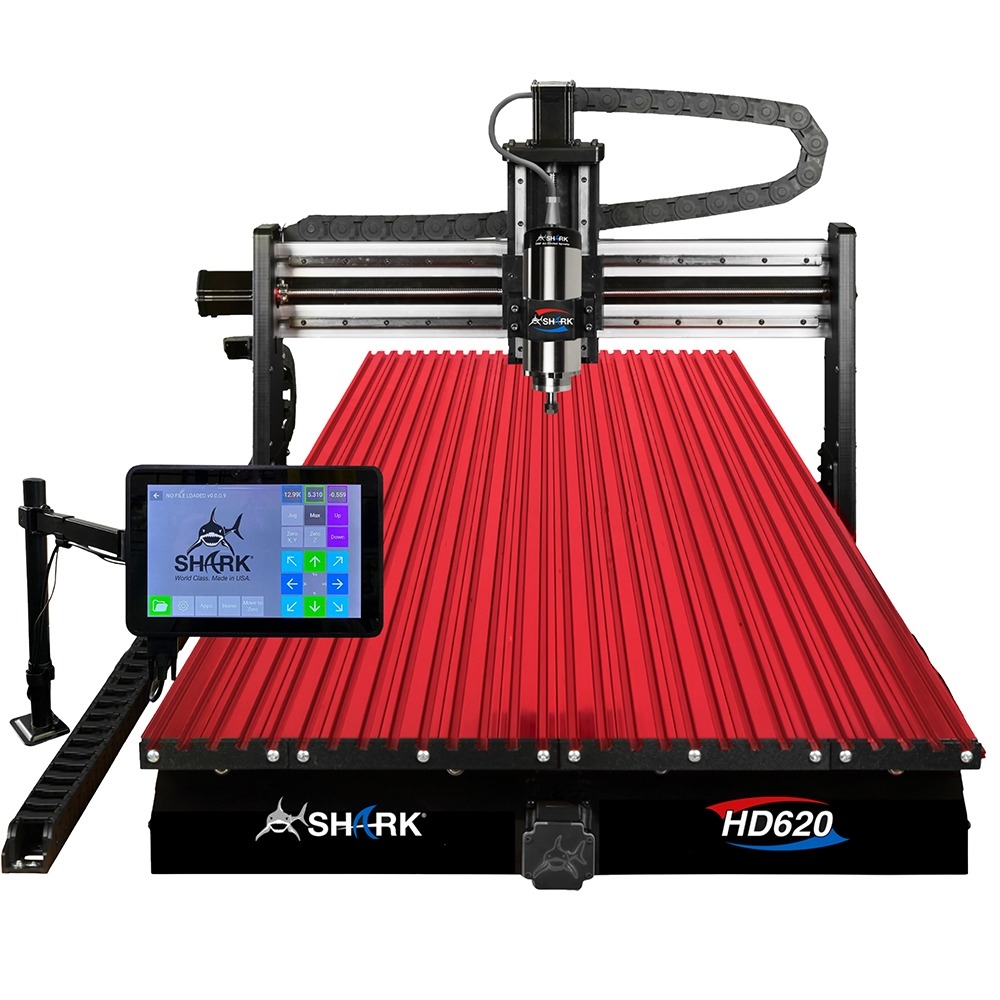

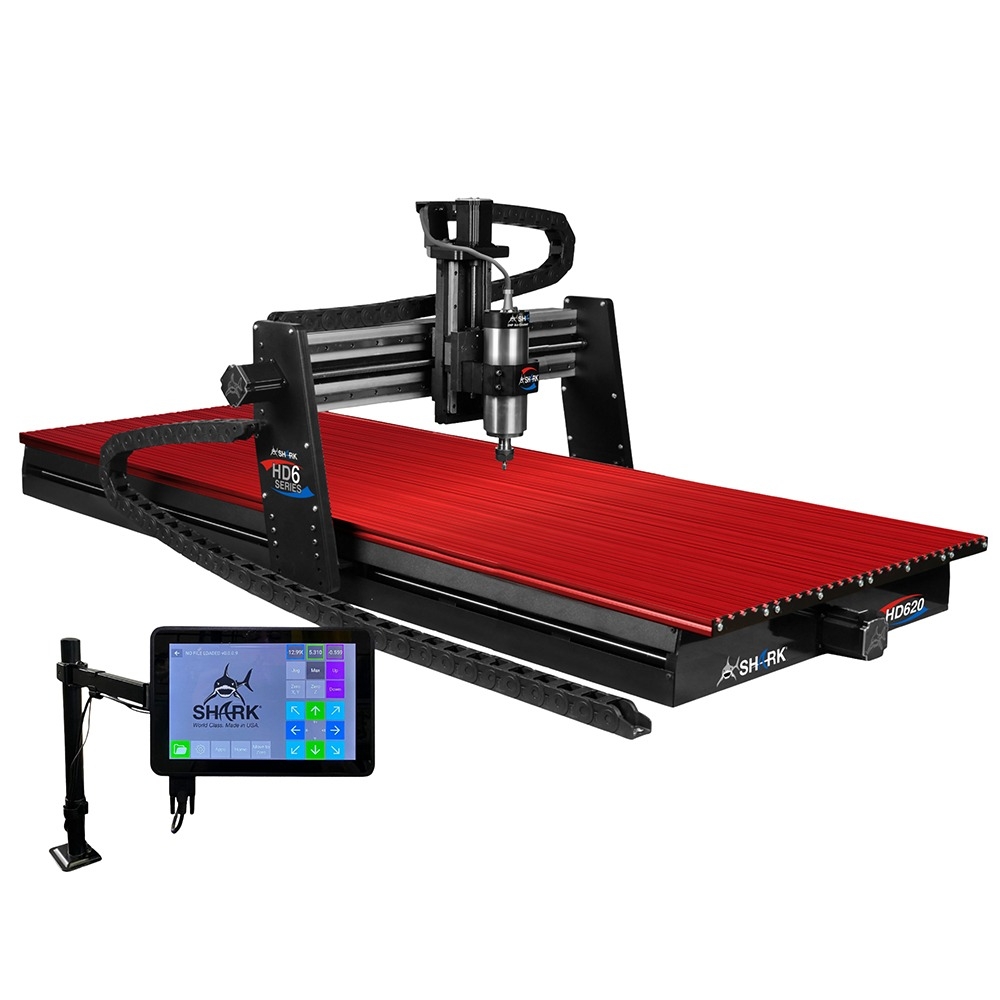

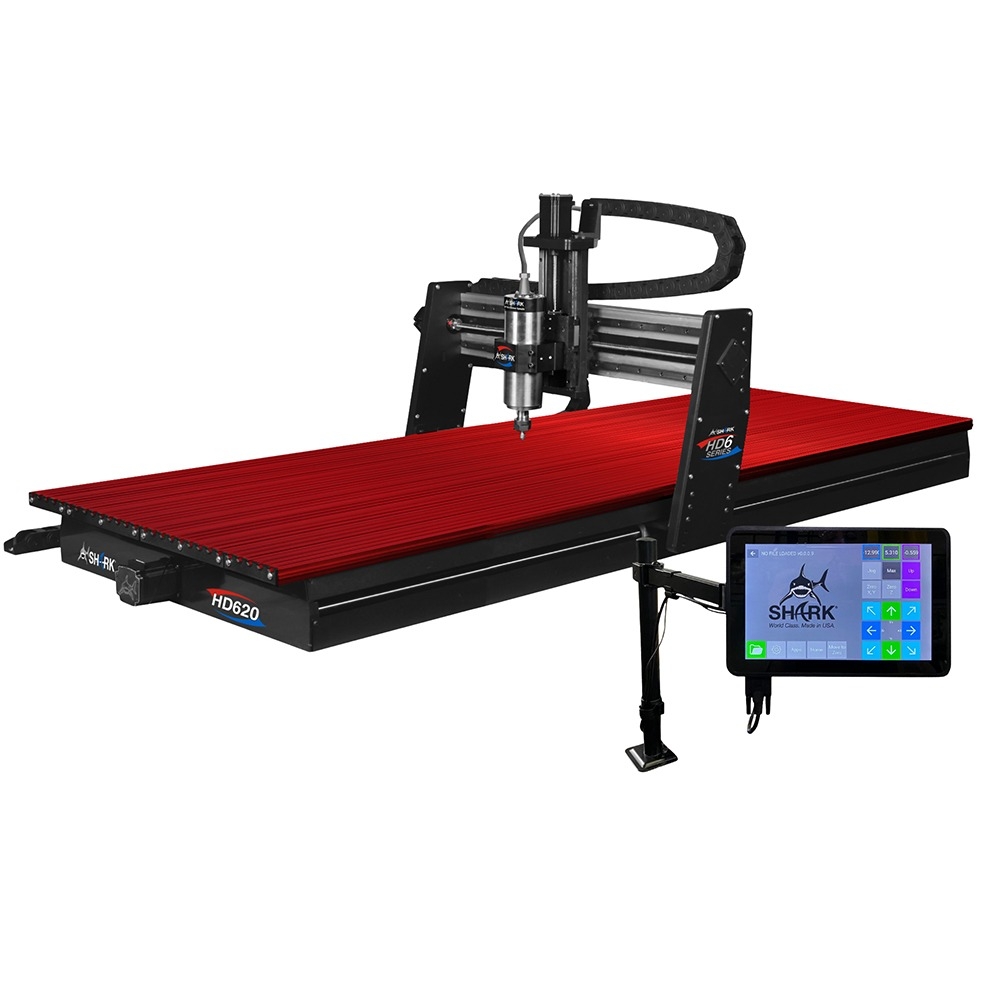

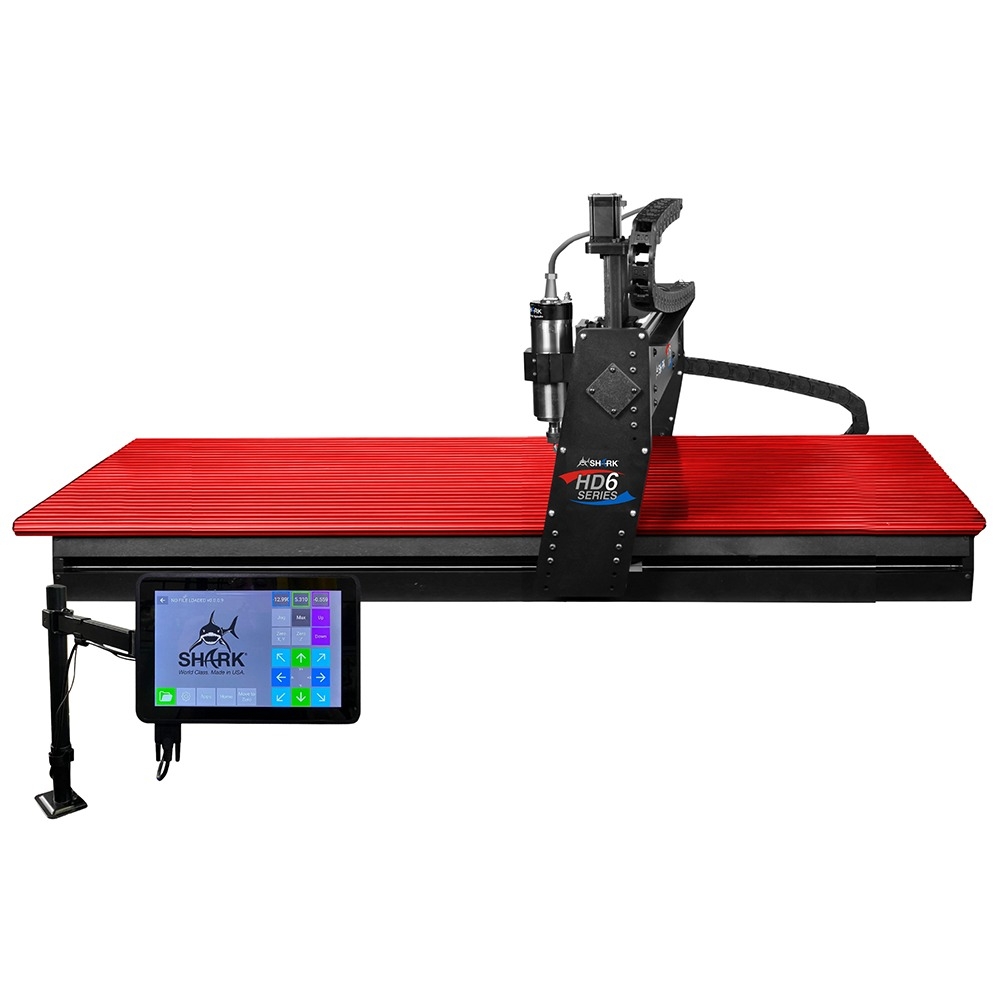

Next Wave CNC Shark HD620 Plus

If you're considering the Shark HD620 Standard (#76692), this HD620 Plus offers the same solid features plus a color-enhanced, 10.1'' Touch Screen Pendant Display and 2HP Air-Cooled Spindle Kit. Among its many industrial-grade components are a reinforced aluminum/steel gantry, interlocking 28'' x 63'' aluminum table, linear rails and anti-backlash lead screws. It also works with some of today's best software options. Vectric VCarve Pro comes standard, along with Next Wave's exclusive Virtual Zero Unlimited. It maps the surface of your material by taking an unlimited number of reference points and uses them to auto-adjust the G-code to conform to the actual surface of your material. This eliminates problems caused by a warped or bowed workpiece and allows you to maintain a constant cutting depth on projects that other machines would not be able to handle.

The HD620 Plus is perfect for projects such as carving plaques, signs, ornamental boxes, and milling precision parts from wood, soft metals or plastics. This CNC router offers 3D carving capability with a 3D model library included. You can cut beautiful relief carvings and intricate inlays plus exquisitely detailed engravings. It's also compatible with a variety of Next Wave accessories (sold separately), including 4th axis for rotary carving, laser modules for engraving, digital probe for 3D duplication and more. Proudly made in the USA, this Shark HD610 Plus offers large capacity and the quiet performance of an industrial-grade spindle.

Next Wave CNC Shark HD620 Plus Details:

• Huge 28'' x 63'' table with linear gantry rails for uncompromising stability
• Full 50'' of Y-axis capacity
• 2HP digitally controlled, Air-Cooled Spindle Kit (#77752) with 1/4'' collet
• Spindle is 75% quieter than a standard router
• 10.1'' Android-based, color-enhanced Touch Screen Pendant (#79437) eliminates the need for a separate PC controller—just transfer your project to a USB drive and plug it into the Pendant
• All-new heavy-duty gantry design for superior accuracy and long-term reliability
• Upgraded precision lead screws that allow for higher cutting speeds
• Precision-ground, vibration-dampening couplers ensure smoother operation and improved cut quality
• Larger drag chain to accommodate both cables and spindle hoses for a cleaner, more organized workspace
• Redesigned aluminum X-box with improved access for tramming and maintenance
• Removable side skirts with magnetic interlocks simplify cleaning and access while maintaining safety
• Aluminum interlocking slotted table allows highly customizable clamping
• Upgraded 36V controller electronics for improved cooling and power delivery to the motors, enabling speeds up to 600 IPM
• Includes Vectric VCarve Pro and Ready2Control software with Virtual Zero Unlimited; also compatible with Aspire, Fusion 360, Mastercam and more
• Can also be computer-controlled to take advantage of the Virtual Zero Unlimited, which adjusts your design to fit curves and angles that would be virtually impossible on other brands of machines (computer and flash drive not included)
• Compatible with Next Wave accessories, including 4th axis, laser modules, digital probe for 3D duplication and more
• US-based technical support
• 2-year factory warranty
• Made in USA
