Built like a tank, this open-based CNC allows you to process workpieces up to 4' x 4'—includes 3HP water-cooled spindle and user-friendly 10.1'' touch screen pendant display.
FREE 3 HP Spindle valued up to $999.99 with Next Wave HD644, HD620, HD610 or HD600 purchase between 6/1/26 – 6/30/26. Rebate shipped direct from Next Wave when you register your CNC Machine

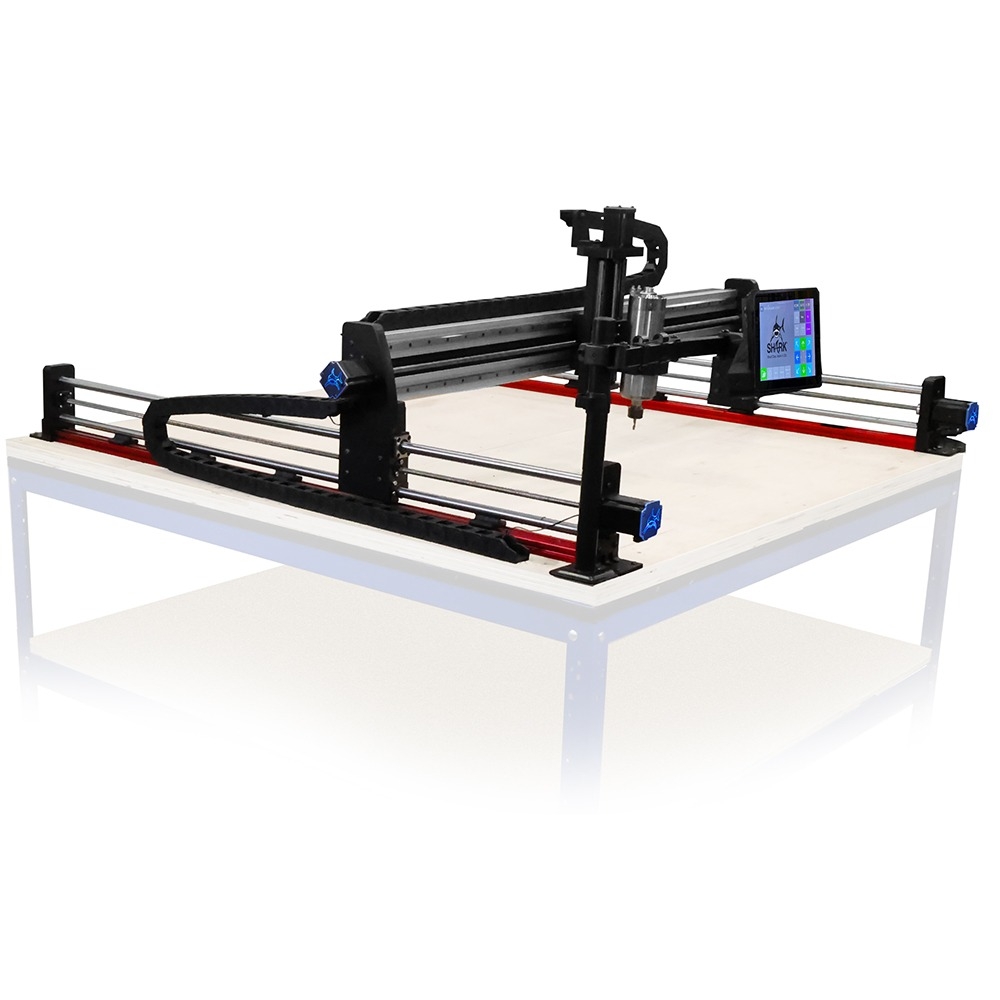

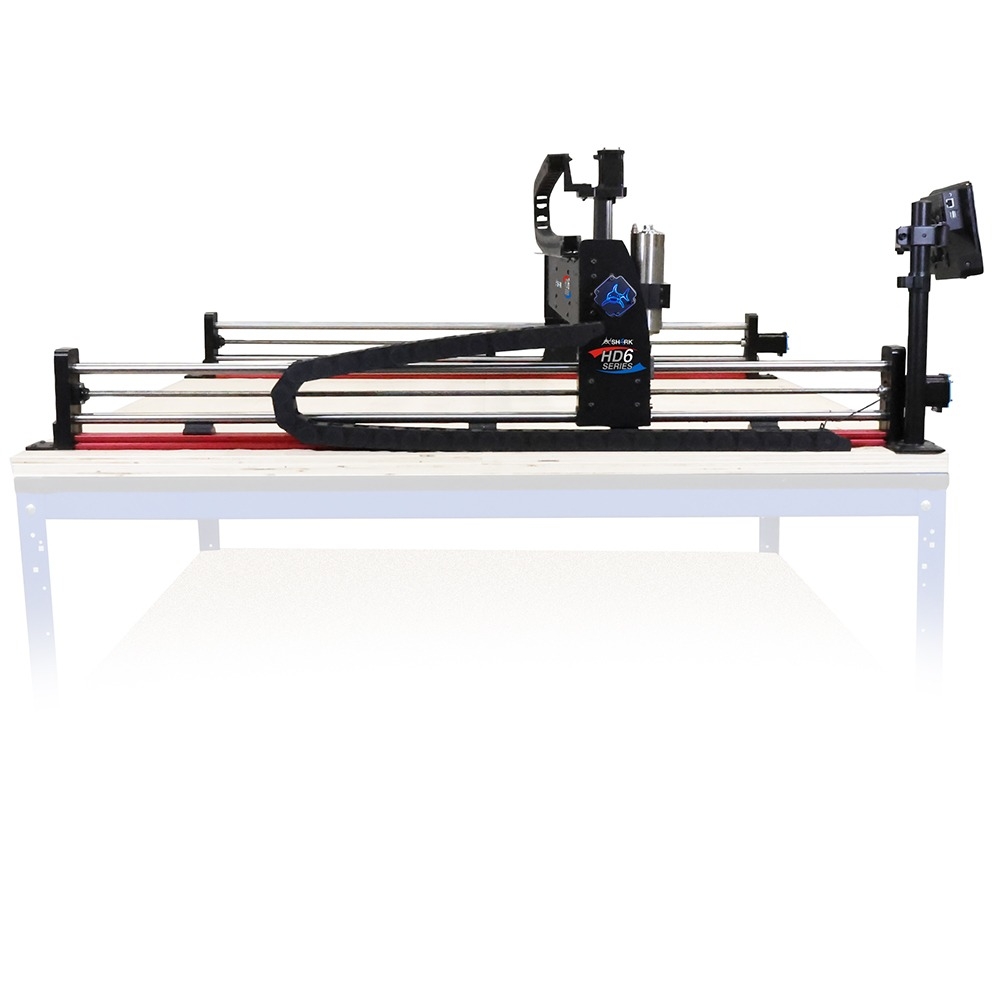

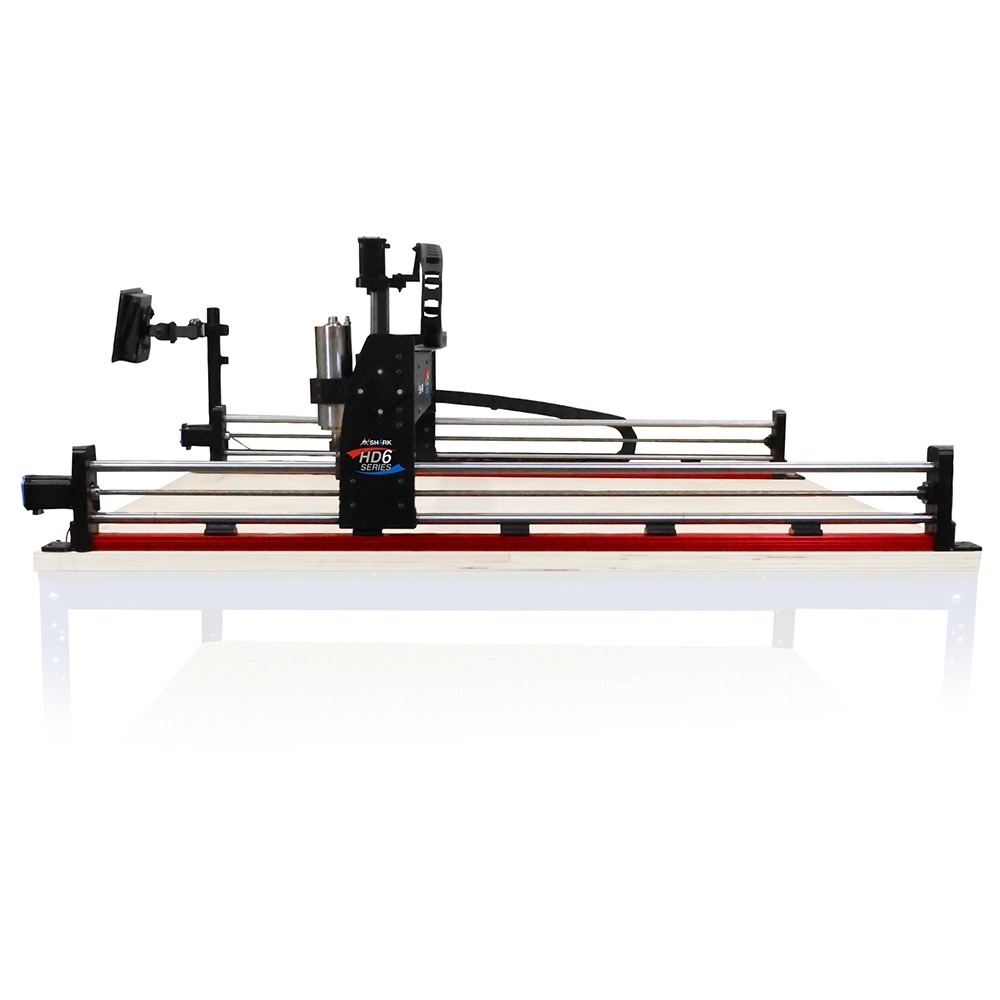

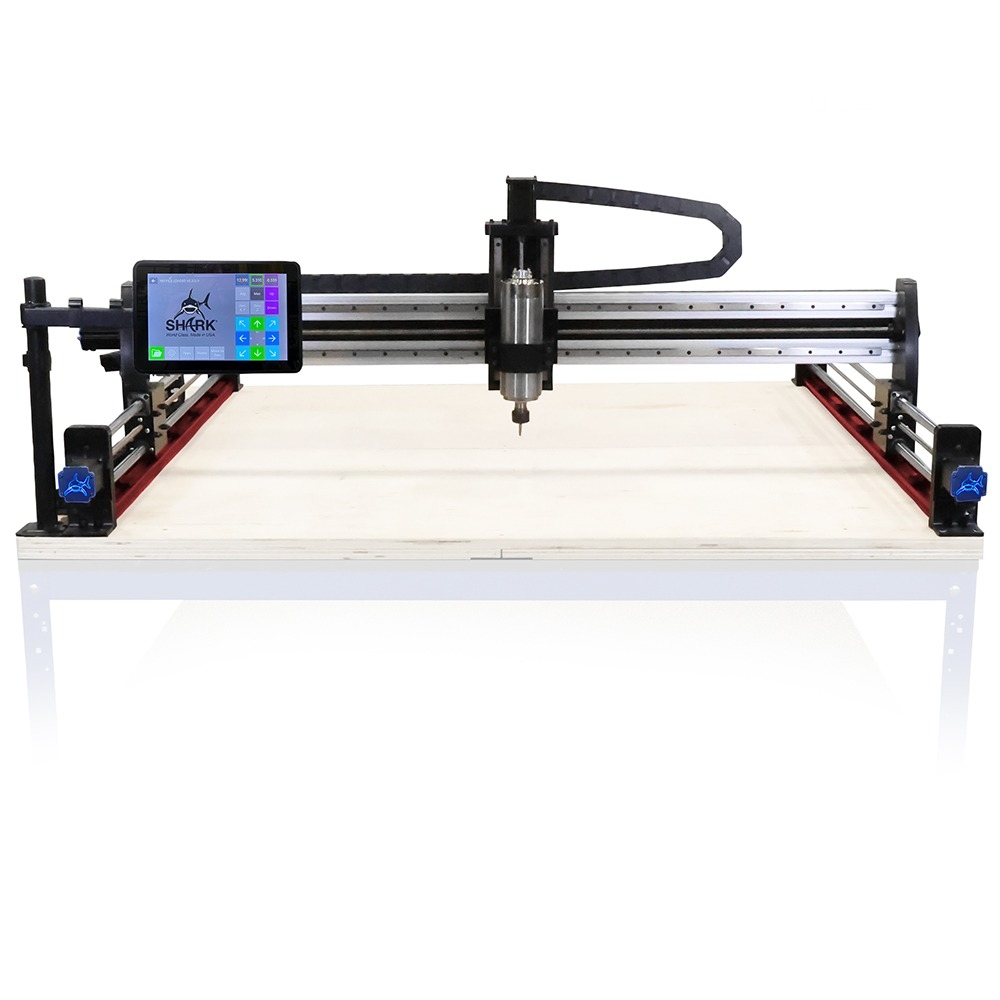

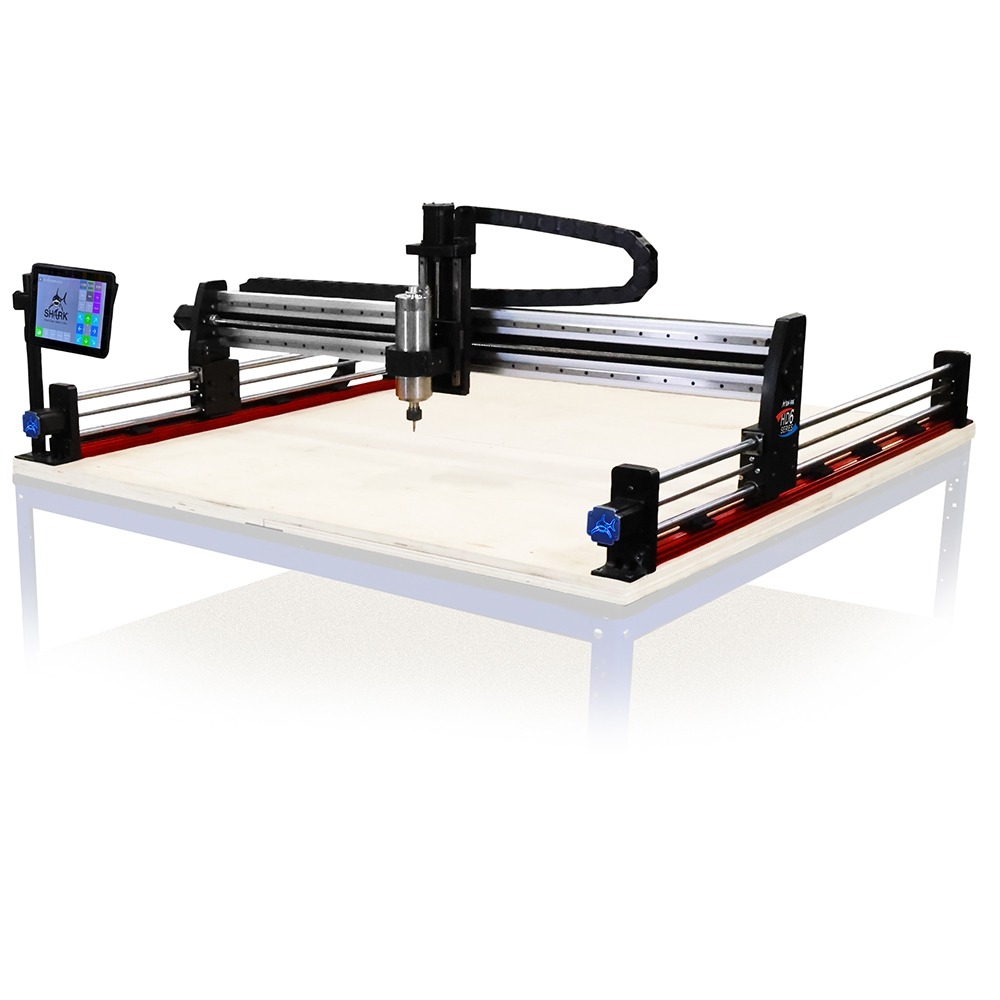

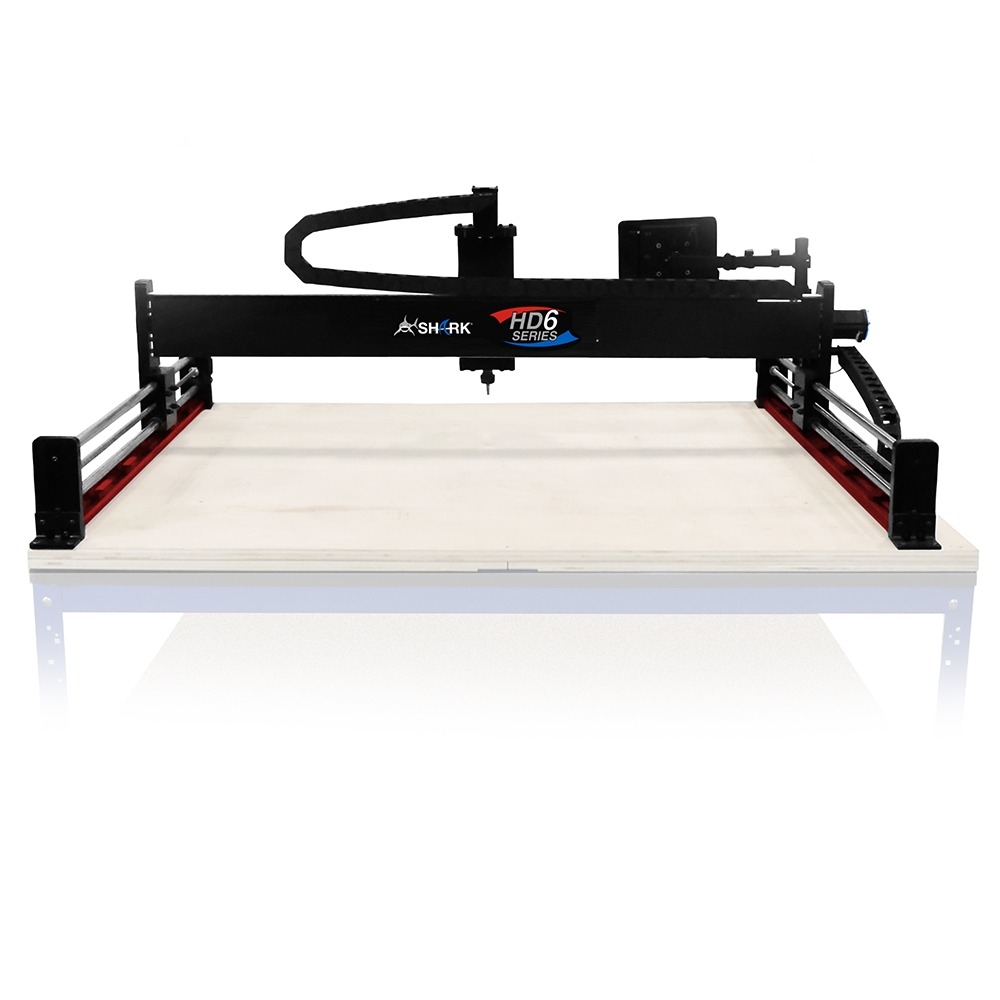

Offering more than 4' x 4' of machining capacity in an open-base platform, Next Wave's CNC Shark HD644 Pro can cut, carve, drill, shape and mill both large and small workpieces with absolute precision and efficiency. Engineered for professional duty, it has a 3HP water-cooled spindle that travels on high-speed linear guides and bearings, with high-speed anti-backlash and ultra precise leadscrews on all axes. A 10.1''-wide color-enhanced pendant controller with touch screen eliminates the need for a separate computer to operate the CNC, if you use VCarvePro software (available separately). Or you can run the Shark HD644 Pro from your laptop or PC with the included Ready2Control program. It lets you use Next Wave's exclusive patented Virtual Zero Unlimited software, which adjusts your design to fit curves and angles that would be impossible on other brands of machines.
Ready to assemble on table measuring at least 64" x 64", which is not included, the HD644 Pro is perfect for projects such as carving plaques, signs, ornamental boxes, and milling precision parts from wood, soft metals or plastics. This CNC router offers 3D carving capability with a 3D model library included. You can cut beautiful relief carvings and intricate inlays plus exquisitely detailed engravings. It's also compatible with a variety of Next Wave accessories (sold separately), including 4th axis for rotary carving, laser modules for engraving, digital probe for 3D duplication and more. It is proudly made in the USA, with US-based technical support.
Next Wave CNC Shark HD644 Pro Details:
Full 50'' of both X- and Y-axis capacity for tackling projects other CNC models can't
3HP digitally controlled, Water-Cooled Spindle Kit (#68293) with 1/4'' and 1/2'' collets
Spindle is 75% quieter than a standard router
10.1'' Android-based, color-enhanced Touch Screen Pendant (#79437) eliminates the need for a separate PC controller—just transfer your project to a USB drive and plug it into the Pendant
True closed-loop, encoded motor system for superior torque, speed and precision (accurate to 0.001'')
All-new heavy-duty gantry design for superior accuracy and long-term reliability
Upgraded precision lead screws that allow for higher cutting speeds
Precision-ground, vibration-dampening couplers ensure smoother operation and improved cut quality
Larger drag chain to accommodate both cables and spindle hoses for a cleaner, more organized workspace
Redesigned aluminum X-box with improved access for tramming and maintenance
Upgraded 36V controller electronics for improved cooling and power delivery to the motors, enabling speeds up to 1,000 IPM
Includes Ready2Control software with Virtual Zero Unlimited; also compatible with VCarve Pro, Aspire, Fusion 360, Mastercam and more
Can also be computer-controlled to take advantage of the Virtual Zero Unlimited, which adjusts your design to fit curves and angles that would be virtually impossible on other brands of machines (computer and flash drive not included)
Rugged aluminum spindle mounting clamp
Compatible with Next Wave accessories, including 4th axis, laser modules, digital probe for 3D duplication and more
US-based technical support
2-year factory warranty
Made in USA
Note: Requires installation on a sturdy shop table with a top measuring at least 64'' x 64''.
