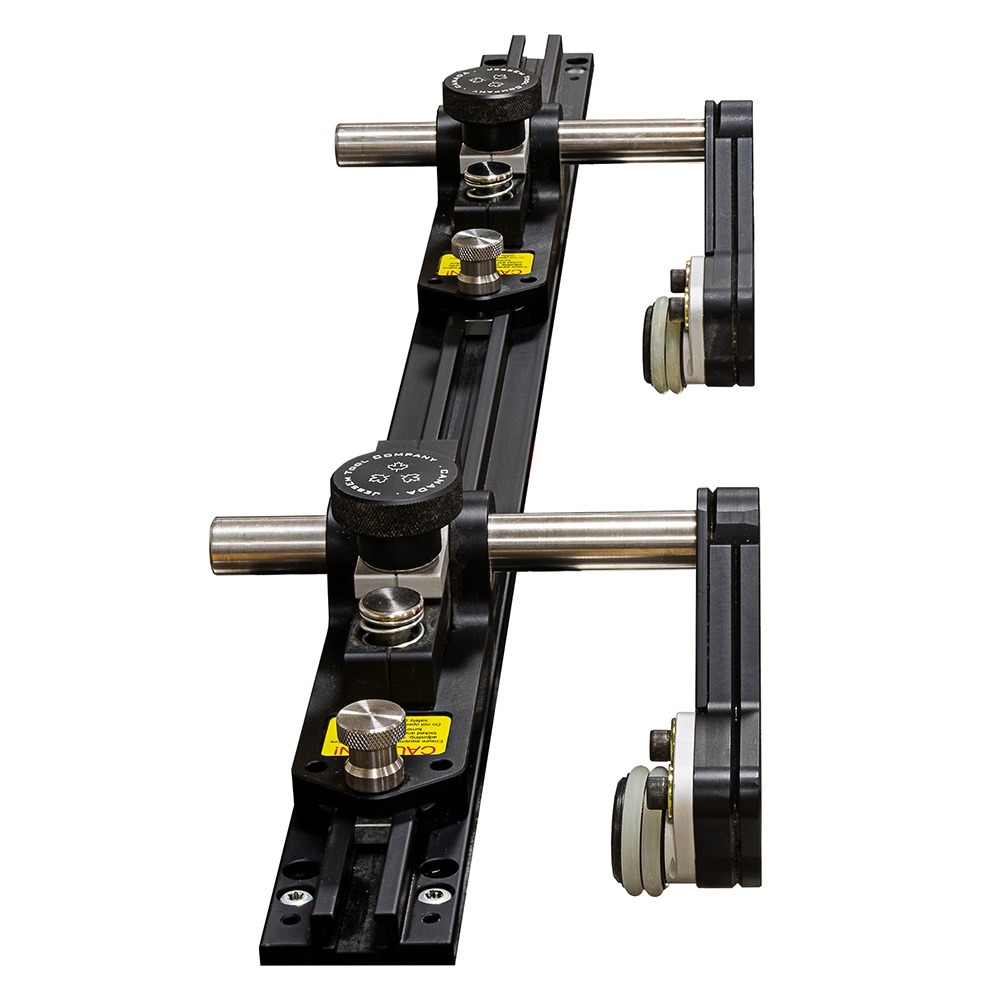

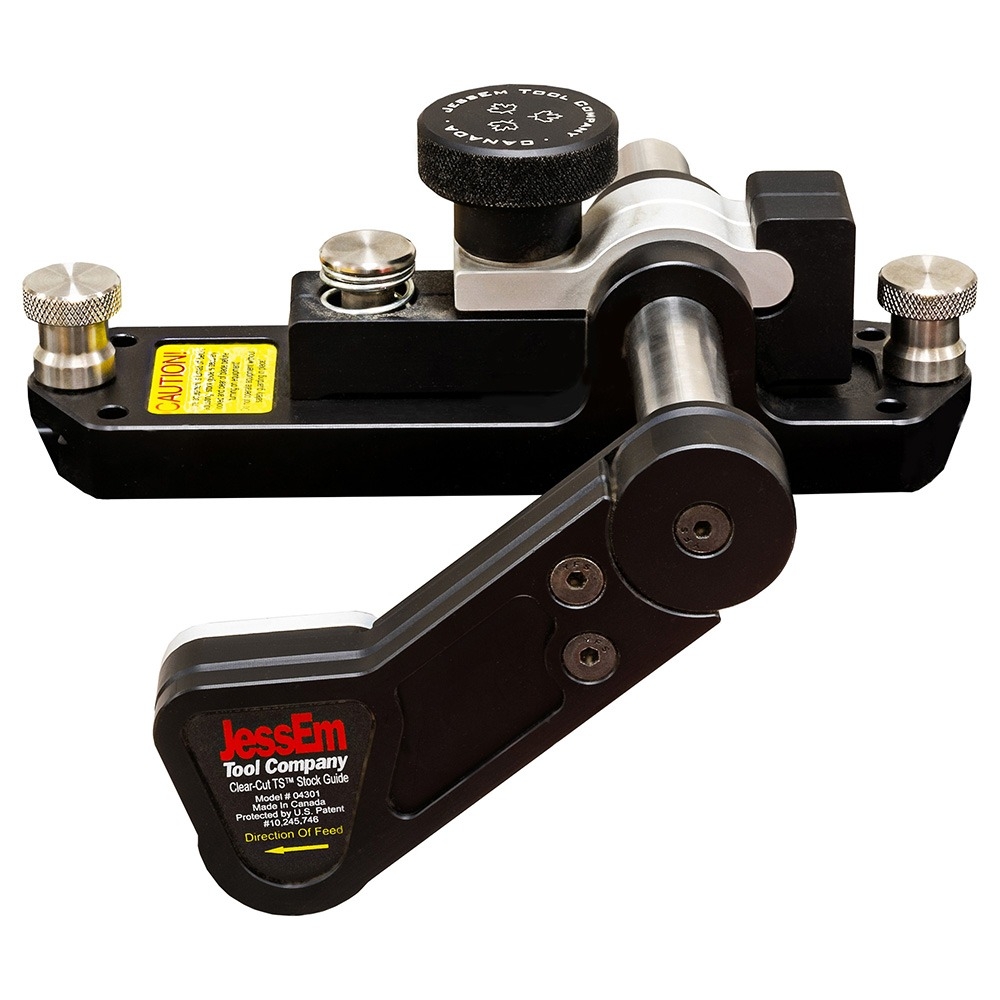

JessEm Clear-Cut TS Table Saw Stock Guide Kit

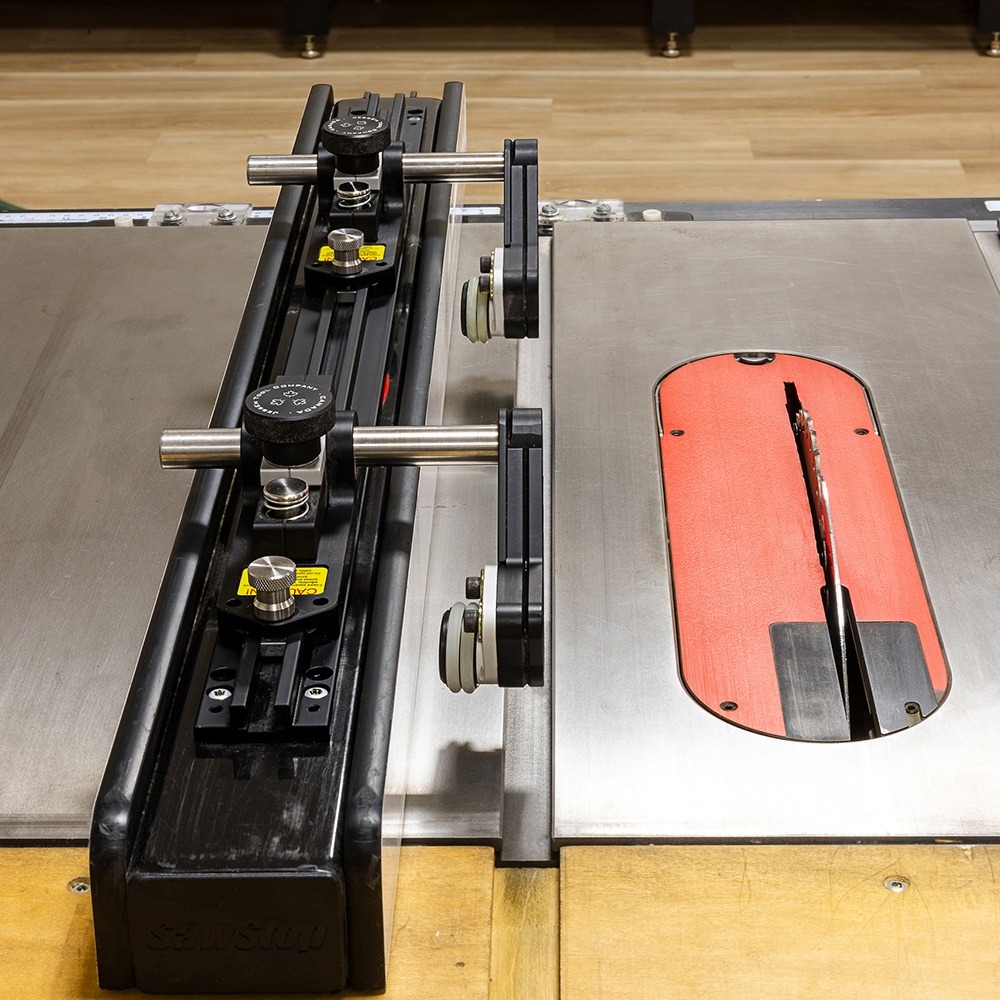

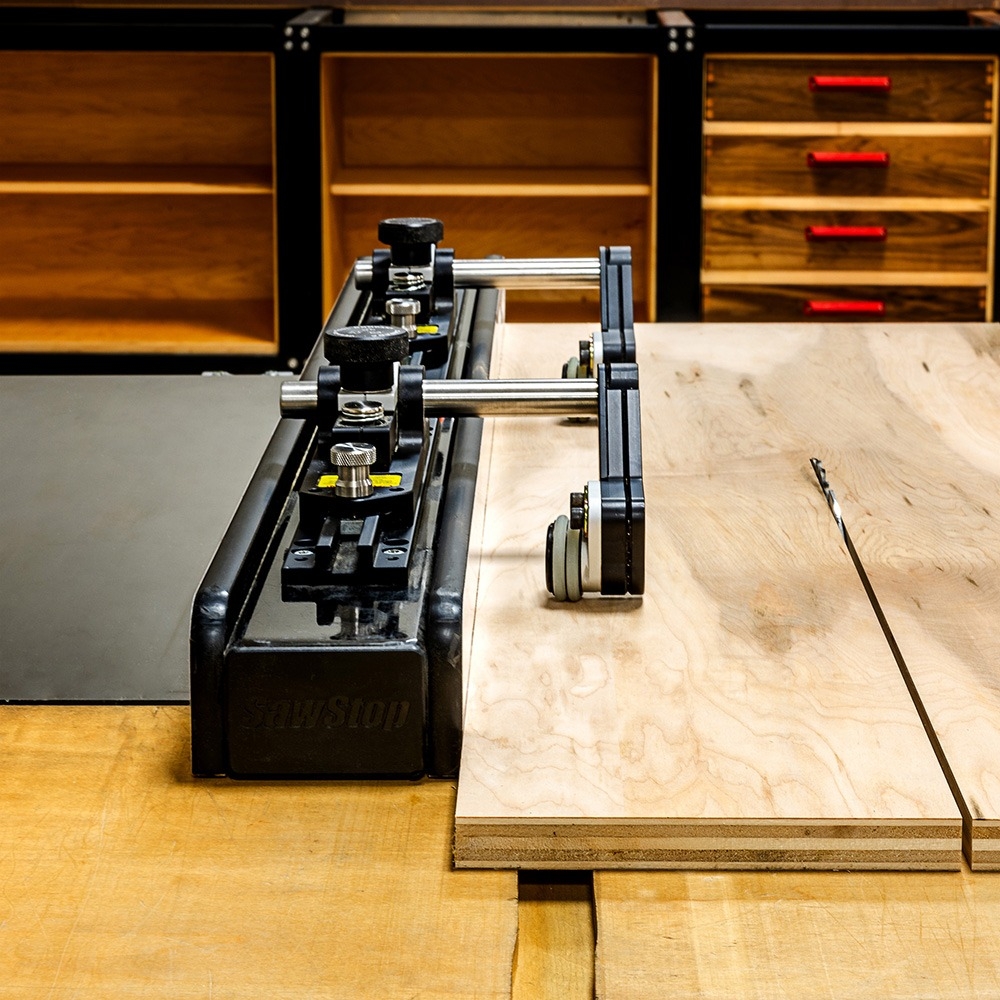

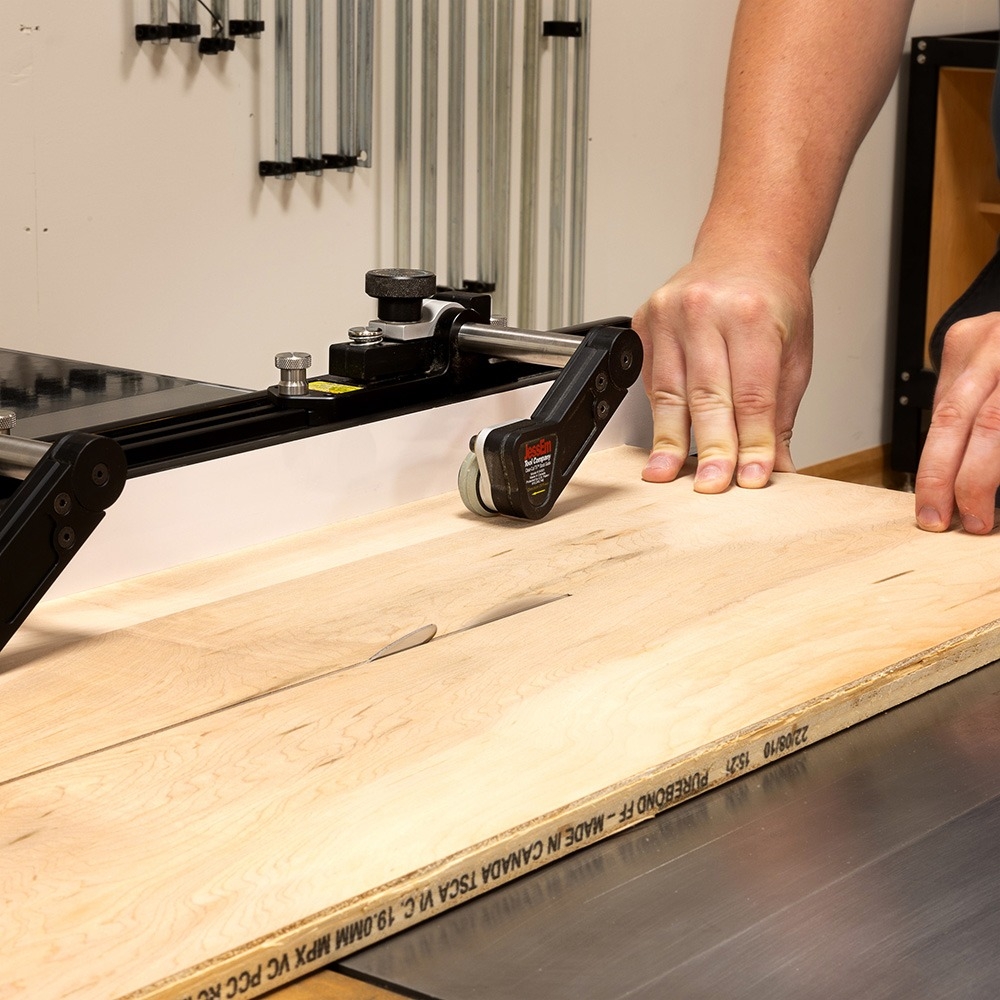

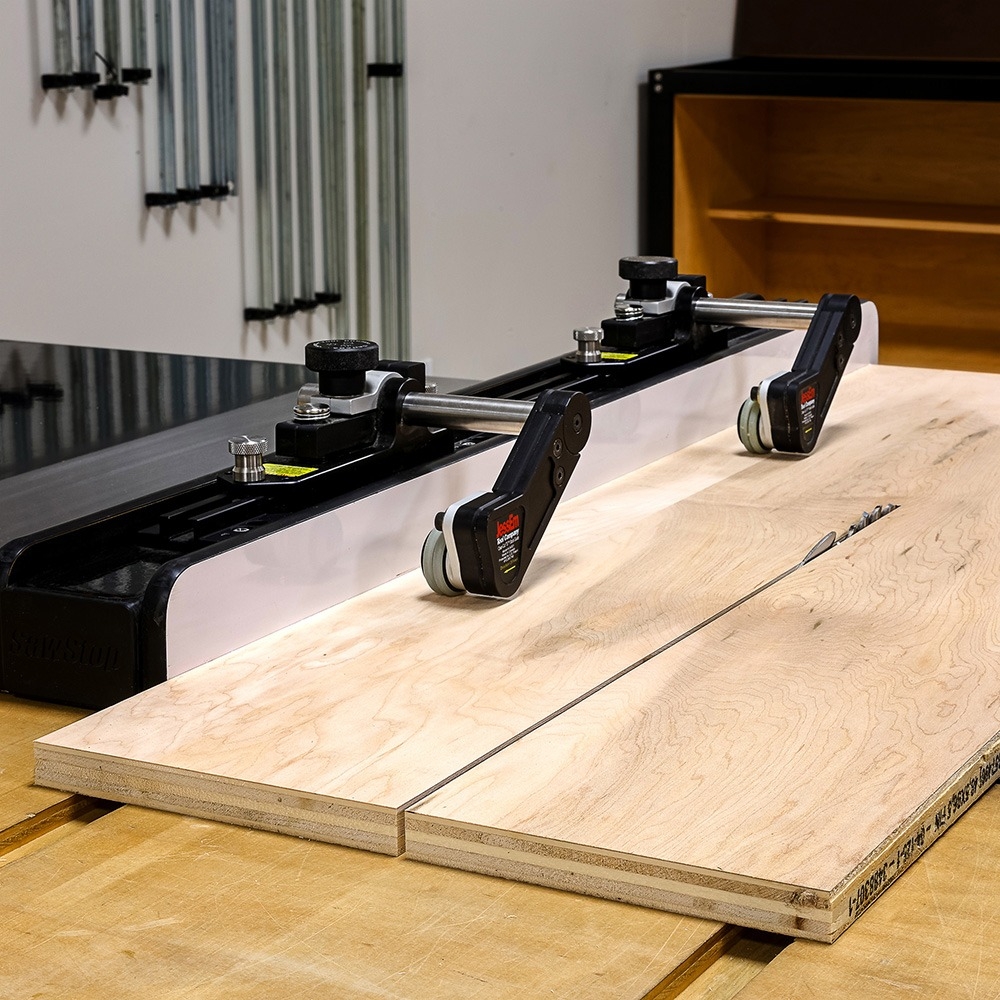

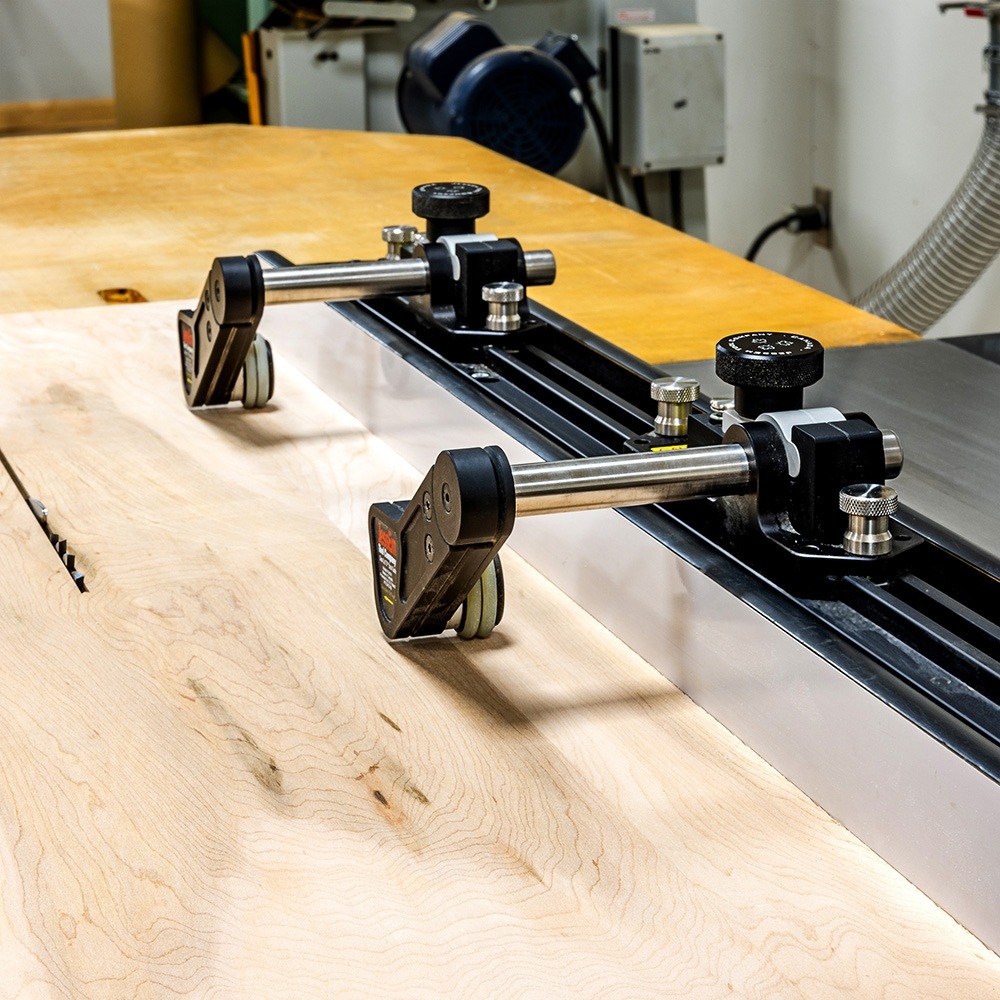

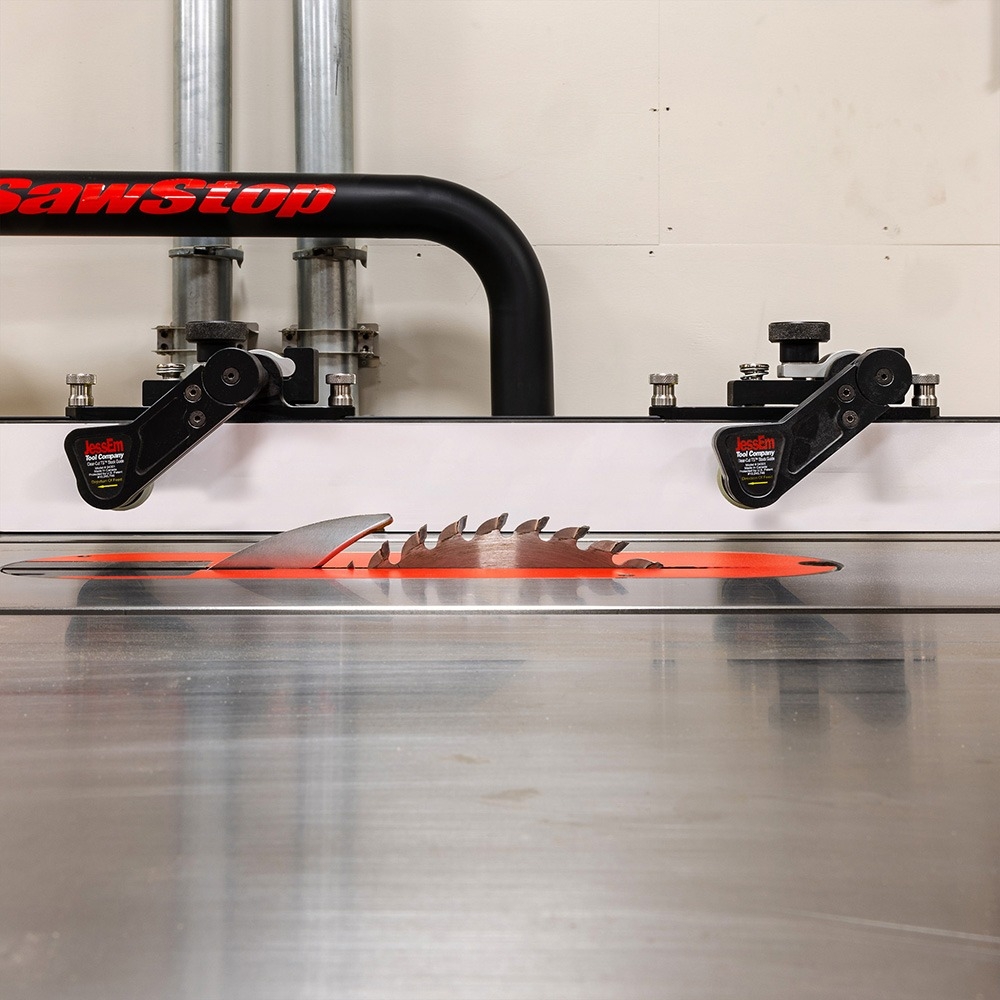

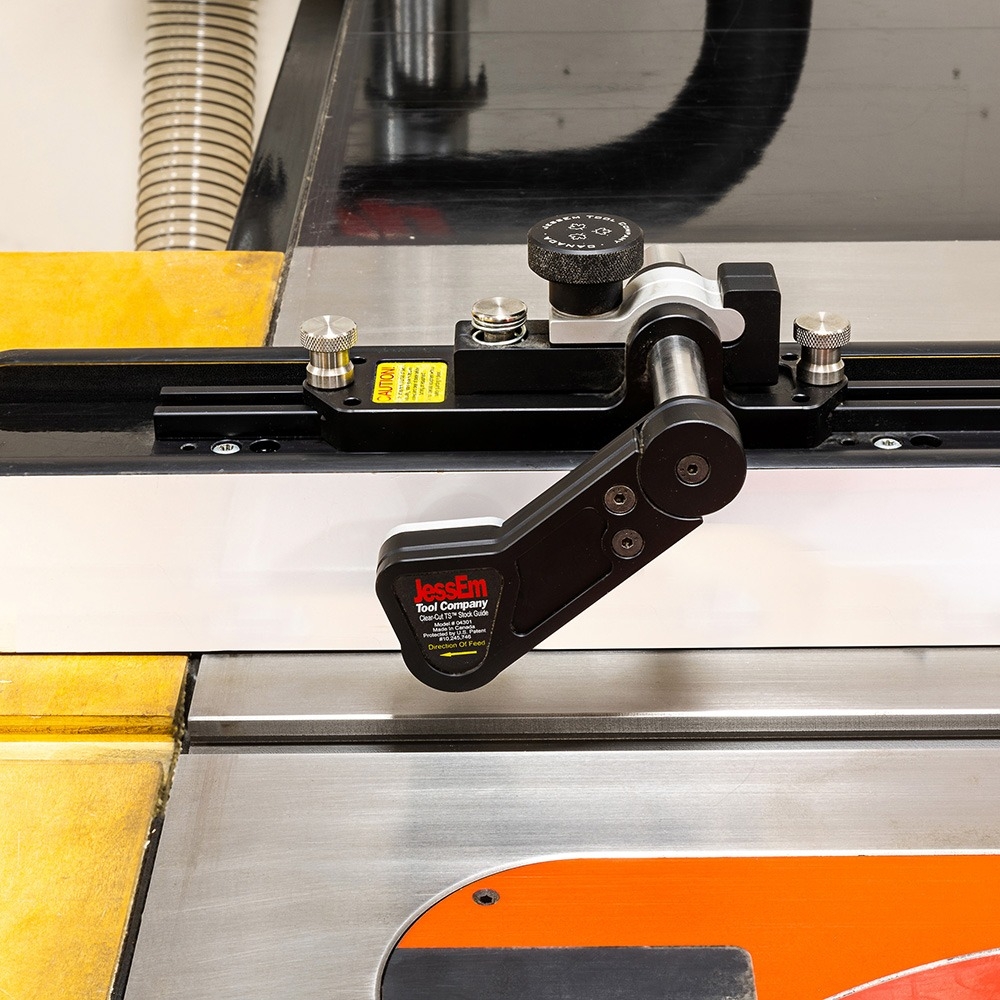

When installed on the rip fence of your full-size table saw, these Clear-Cut TS Stock Guides will help guide your rip cuts by holding workpieces securely against the fence while you feed them through the cut. A pair of spring-loaded, high-performance urethane guide rollers are mounted at a 5° inward angle toward the fence, which improves their grip on workpieces and eliminates any lateral movement away from the fence. One-way roller bearings rotate only in the direction of feed, dramatically reducing the possibility of kickback. The stock guides can be adjusted both along the length of the phenolic T-track base and inward or outward, to suit different stock lengths and widths. They lock in position with a twist of the anodized aluminum clamping knobs. When not in use, just raise and retract the guide arms behind the fence face so they won't interfere with other cutting operations.

Offering 3-1/8'' of total vertical travel and the ability to accommodate stock thicknesses up to 13/16'' above the mounting surface when attached to the T-track, these guides can handle a wide range of stock thicknesses.

JessEm Clear-Cut TS Table Saw Stock Guide Kit Details:

• Spring-loaded urethane rollers guide workpieces inward toward the fence during rip cuts, improving cutting accuracy and reducing the risk of accidents
• One-way roller bearings only roll in the direction of feed, preventing backward movement

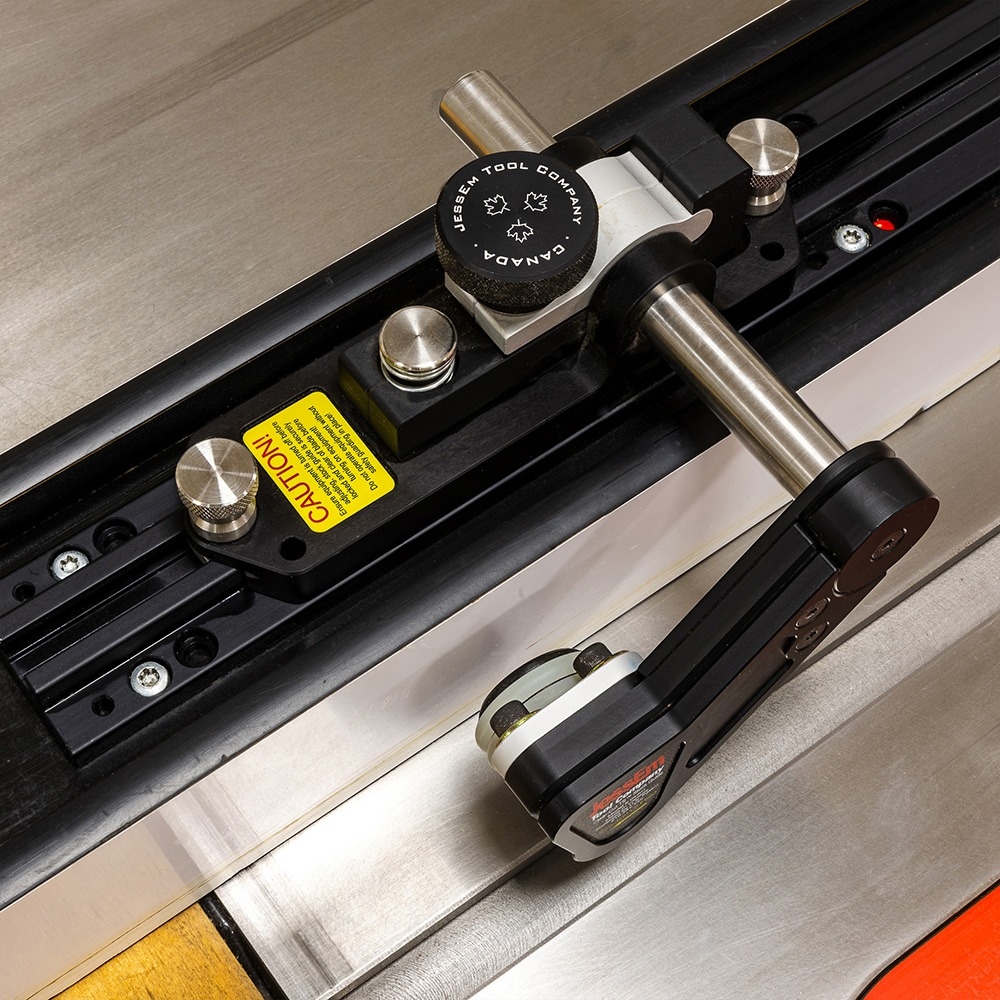

• Guides lock into position along the phenolic T-track base and adjust inward and outward with large knobs
• Adjusts vertically up to 3-1/8'' for thick stock
• Guide arms are CNC machined from 6000-series aluminum and anodized for durability
• Roller axles are machined from cold-rolled steel and case hardened for exceptional longevity
• Wear-resistant acetal resin rollers with urethane traction tires ensure superior grip
• Fits Biesemeyer-style table saw rip fences

Note: Rip fences must be at least 2'' wide. Not compatible with most portable table saws. For jobsite saws and saws with narrower rip fences, see the Clear-Cut STS Table Saw Stock Guide Kit (#77996, sold separately).

Compatible routers: All Phenolic Bases are designed to fit on a standard Biesemeyer Fence.
